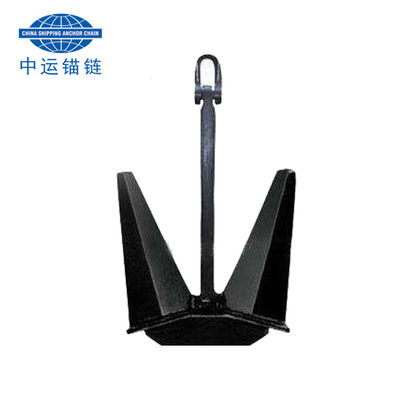

HHP Pool Marine Anchor TW Type With IACS Cert. High Holding Power Anchor

HHP Pool Marine Anchor TW Type With  IACS Cert.  High Holding Power Anchor
HHP Pool Marine Anchor TW Type With  IACS Cert.  High Holding Power Anchor

Large Image :  HHP Pool Marine Anchor TW Type With IACS Cert. High Holding Power Anchor

Product Details:
Place of Origin: China
Brand Name: High Holding Power Anchor
Certification: KR LR BV NK CCS ABS DNV-GL RMRS IRS RINA
Model Number: HHP Danforth Anchor
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1200~1300USD
Packaging Details: Pool Anchor Disassemble into anchor head and shank
Delivery Time: 25~35days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1800T/month

HHP Pool Marine Anchor TW Type With IACS Cert. High Holding Power Anchor

Description
Size: 300~30000kg Type: High Holding Power Anchor
Useage: Pool Marine Certificate: DNV-GL, ABS, LRS, BV, KR, NK, RS, IRS, RINA, CCS
Material: High Strength Steel Anchor: Pool Anchor
High Light:

Q345C High Holding Power Anchors

,

TW Type High Holding Power Anchors

,

TW Type Power Boat Anchors

HHP  Pool Marine Anchor N Type with IACS Cert. High Holding Power Anchor



TW anchors have the predicate HHP which allows a weight reduction of 25% compare to conventional anchors  Welded from high tensile steel plate material  TW anchors have large flat flukes and crownplate prevent to dig in too deep  The extreme points and the inner edges of flukes are sharpened to enable them to dig in easily and quick  Low force in transverse direction is necessary to lift the anchor.



Product Details:

High Holding Power Anchor
Material: ZG230-45CH, Q345C, stainless steel 316L
Weight: 50kg to 20000kg
Finishing: black painting, hot dip galvanized
Certificate: BV, ABS, DNV,GL, LRS, RINA, RS, IRS, CCS, KR, NK

HHP Pool Marine Anchor TW Type With  IACS Cert.  High Holding Power Anchor 0



Nominal Weight(kg) A B C D E F
60 590 555 470 364 157 270
80 664 605 515 410 176 295
100 712 655 555 440 190 320
160 835 765 650 516 223 370
200 885 825 700 546 236 400
280 1008 925 780 622 269 450
360 1096 1005 855 677 292 490
480 1186 1105 940 728 314 535
600 1300 1190 1010 802 347 580
765 1410 1290 1096 870 375 610
1000 1526 1395 1185 942 404 660
1080 1580 1446 1230 975 421 685
1195 1636 1485 1270 1010 436 708
1305 1680 1541 1308 1037 448 730
1440 1738 1592 1352 1073 464 754
1575 1769 1640 1386 1092 472 777
1710 1840 1686 1455 1137 491 798
1845 1890 1729 1469 1168 504 819
1980 1935 1770 1504 1195 516 836
2140 1986 1816 1543 1226 530 860
2295 2030 1860 1580 1254 540 880
2655 2140 1954 1684 1322 566 926
2835 2188 1996 1700 1351 580 945
3000 2238 2042 1736 1382 592 968
3240 2287 2086 1773 1412 605 988
3940 2442 2226 1892 1508 646 1055
4500 2553 2328 1976 1567 675 1103
5175 2675 2439 2072 1651 708 1155
5515 2730 2491 2116 1686 722 1180
5850 2786 2541 2159 1720 737 1204
6225 2838 2594 2204 1750 756 1229
6525 2880 2635 2239 1780 768 1248
6975 2948 2695 2290 1820 786 1276
7425 3010 2760 2338 1858 802 1303
7875 3069 2805 2384 1895 818 1329
8775 3180 2908 2471 1964 848 1376
9225 3235 2968 2512 1997 862 1401
9675 3286 3004 2553 2029 876 1423
10125 3337 3060 2592 2060 890 1445
10575 3386 3095 2630 2090 902 1468
12075 3538 3236 2748 2184 943 1533
12675 3596 3288 2794 2220 958 1556
13350 3658 3346 2842 2258 975 1585
14100 3726 3406 2894 2300 993 1614
15000 3804 3476 2954 2348 1014 1646
17250 3985 3643 3095 2460 1062 1726
20825 4240 3887 3285 2618 1130 1832
24750 4495 4109 3491 2775 1198 1947
28875 4717 4324 3675 2912 1258 2049

HHP Pool Marine Anchor TW Type With  IACS Cert.  High Holding Power Anchor 1HHP Pool Marine Anchor TW Type With  IACS Cert.  High Holding Power Anchor 2HHP Pool Marine Anchor TW Type With  IACS Cert.  High Holding Power Anchor 3

Our Advantage:

1. Are you Manufactuer?



Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port

shanghai docking place, chengxi qidong docking place and zhoushan docking place



2. Your quality?



Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.

we have skillful technicist team and quality team and with IACS approved workers.



3. Your production?



We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel

and our normally production time is 15days. with IACS cert.



4. Could you offer other advantage?



we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.

And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.

And we keep some anchor in stock with LR / NK cert.
