Product Details:
|
Size: | 22~200mm | Grade: | Grade 3 |
---|---|---|---|
Production: | Flash Butt Welded | Material: | M1 M2 M3 U1 U2 U3 |
Pruduce: | Studlink Anchor Chain | Surface: | Shot Blasting |
Standard: | ISO 1704 | ||
High Light: | DNV Approved Stud link Anchor Chain,DNV Approved High Tensile Chain,CCS Approved Stud link Anchor Chain |

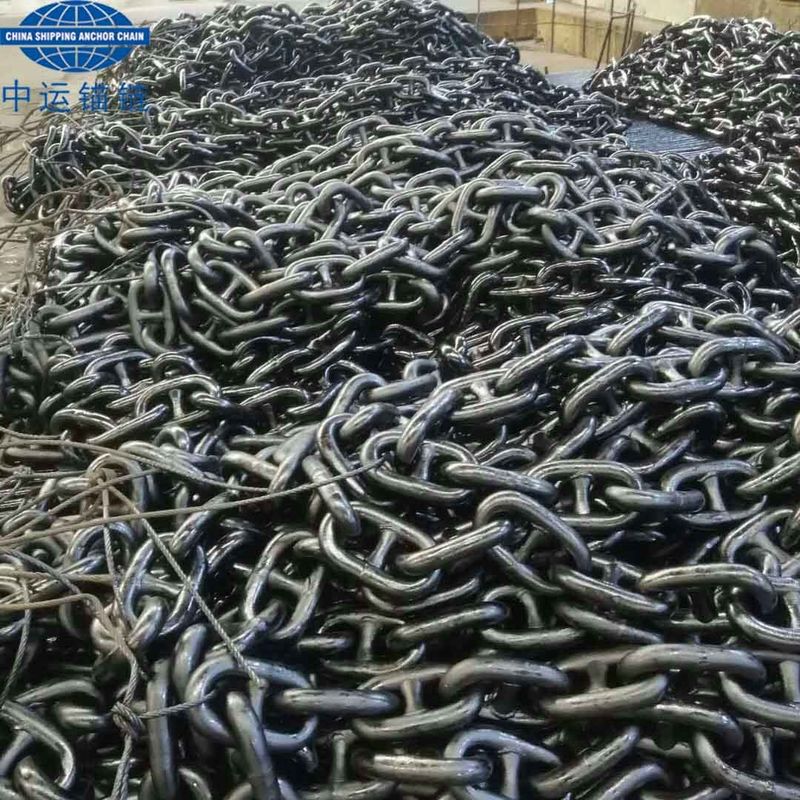

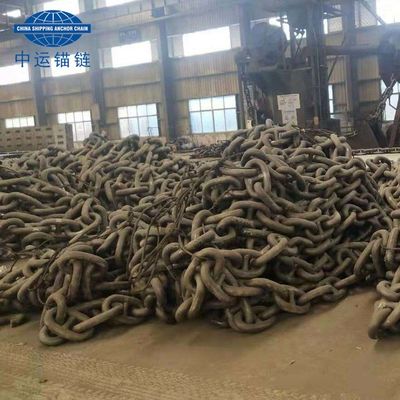

KR BV CCS DNV approved Studlink Anchor Chain
Studlink Anchor Chain are one of the most important tools of the ship for its anchoring operations.
Studlink Anchor Chain are available in various grades from grade 1 up to grade 3. The Stud link Anchor Chain in grade 2 and grade 3 are the most used anchor chains for commercial shipping. The below is Stud link Anchor Chain proof Load and Bearking Load for your reference to help chose the right size and grade of Studlink Anchor Chain.
Type | Studlink Anchor Chain |
Size | 22~162mm |
Grade | Grade U1 U2 U3 U4 |
Certificate | KR LR BV NK CCS ABS DNV GL RMRS RINA |
Production line | Flash Butt Welded |
Standard | ISO 1704 |
Production capacity | 2200T/month |
Heat Treatment |
normalizing, tempered |
Delivery time | 1~15days |
Also We can offer Install and cleaning a foul hawse service at all chinese port shipyard and in Singapore port, for some famous International Port we have local cooperator to offer one shop service.
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
Studlink Anchor Chain Date Sheet
Dia.(mm) | Grade 1 | Grade 2 | Grade 3 | |||
Breaking Load (kN) | Proof Load | Breaking Load (kN) | Proof Load (kN) | Breaking Load (kN) | Proof Load (kN) | |
11 | 52 | 36 | 72 | 52 | 102 | 72 |
12.5 | 66 | 46 | 92 | 66 | 132 | 92 |
14 | 82 | 58 | 116 | 82 | 165 | 116 |
16 | 107 | 76 | 150 | 107 | 216 | 150 |
17.5 | 127 | 89 | 179 | 127 | 256 | 179 |
19 | 150 | 105 | 211 | 150 | 301 | 211 |
20.5 | 175 | 123 | 244 | 175 | 349 | 244 |
22 | 200 | 140 | 280 | 200 | 401 | 280 |
24 | 237 | 167 | 332 | 237 | 476 | 332 |
26 | 278 | 194 | 389 | 278 | 556 | 389 |
28 | 321 | 225 | 449 | 321 | 642 | 449 |
30 | 368 | 257 | 514 | 368 | 735 | 514 |
32 | 417 | 291 | 583 | 417 | 833 | 583 |
34 | 468 | 328 | 655 | 468 | 937 | 655 |
36 | 523 | 366 | 732 | 523 | 1050 | 732 |
38 | 581 | 406 | 812 | 581 | 1160 | 812 |
40 | 640 | 448 | 895 | 640 | 1280 | 895 |
42 | 703 | 492 | 981 | 703 | 1400 | 981 |
44 | 769 | 538 | 1080 | 769 | 1540 | 1080 |
46 | 837 | 585 | 1170 | 837 | 1680 | 1170 |
48 | 908 | 635 | 1270 | 908 | 1810 | 1270 |
50 | 981 | 686 | 1370 | 981 | 1960 | 1370 |
52 | 1060 | 739 | 1480 | 1060 | 2110 | 1480 |
54 | 1140 | 794 | 1590 | 1140 | 2270 | 1590 |
56 | 1220 | 851 | 1710 | 1220 | 2430 | 1710 |
58 | 1290 | 909 | 1810 | 1290 | 2600 | 1810 |
60 | 1380 | 969 | 1940 | 1380 | 2770 | 1940 |
62 | 1470 | 1030 | 2060 | 1470 | 2940 | 2060 |
64 | 1560 | 1100 | 2190 | 1560 | 3130 | 2190 |
66 | 1660 | 1160 | 2310 | 1660 | 3300 | 2310 |
68 | 1750 | 1230 | 2450 | 1750 | 3500 | 2450 |
70 | 1840 | 1290 | 2580 | 1840 | 3690 | 2580 |
73 | 1990 | 1390 | 2790 | 1990 | 3990 | 2790 |
76 | 2150 | 1500 | 3010 | 2150 | 4300 | 3010 |
78 | 2260 | 1580 | 3160 | 2260 | 4500 | 3160 |
81 | 2410 | 1690 | 3380 | 2410 | 4820 | 3380 |
84 | 2580 | 1800 | 3610 | 2580 | 5160 | 3610 |
87 | 2750 | 1920 | 3850 | 2750 | 5500 | 3850 |
90 | 2920 | 2050 | 4090 | 2920 | 5840 | 4090 |
92 | 3040 | 2130 | 4260 | 3040 | 6080 | 4260 |
95 | 3230 | 2260 | 4510 | 3230 | 6440 | 4510 |
97 | 3340 | 2340 | 4680 | 3340 | 6690 | 4680 |
100 | 3530 | 2470 | 4940 | 3530 | 7060 | 4940 |
102 | 3660 | 2560 | 5120 | 3660 | 7320 | 5120 |
105 | 3850 | 2700 | 5390 | 3850 | 7700 | 5390 |
107 | 3980 | 2790 | 5570 | 3980 | 7960 | 5570 |
111 | 4250 | 2970 | 5940 | 4250 | 8480 | 5940 |
114 | 4440 | 3110 | 6230 | 4440 | 8890 | 6230 |
117 | 4650 | 3260 | 6510 | 4650 | 9300 | 6510 |
120 | 4850 | 3400 | 6810 | 4850 | 9720 | 6810 |
122 | 5000 | 3500 | 7000 | 5000 | 9990 | 7000 |
124 | 5140 | 3600 | 7200 | 5140 | 10280 | 7200 |
127 | 5350 | 3750 | 7490 | 5350 | 10710 | 7490 |
130 | 5570 | 3900 | 7800 | 5570 | 11140 | 7800 |
132 | 5720 | 4000 | 8000 | 5720 | 11420 | 8000 |
137 | 6080 | 4260 | 8510 | 6080 | 12160 | 8510 |
142 | 6450 | 4520 | 9030 | 6450 | 12910 | 9030 |
147 | 6840 | 4790 | 9560 | 6840 | 13660 | 9560 |
152 | 7220 | 5050 | 10100 | 7220 | 14430 | 10100 |
157 | 7600 | 5320 | 10640 | 7600 | 15200 | 10640 |
162 | 7990 | 5590 | 11180 | 7990 | 15980 | 11180 |
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
TAG: ANCHOR CHAIN STUDLINK ANCHOR CHAIN ANCHOR CHAIN WITH KR BV CCS DNV
