Product Details:
|
Size: | 0.5~3.3M | Type: | Marine Steel Floating Mooring Buoy |
---|---|---|---|
Useage: | Single Mooring Buoy | Certificate: | BV ABS CCS LR |
Material: | High Strength Marine Steel | Buoyancy: | 1T 2T 5T 10T 12T 15T 21T 42T Ect |
High Light: | 10T Steel Mooring Buoy,SB Mooring Buoys,10T Yacht mooring buoys |
high safety Anchorage Area Yacht SB 10T Steel Mooring Buoy
SB Mooring Buoys Steel Mooring Buoy--China Shipping Anchor Chain
Yacht mooring buoys are manufactured from a moulded core of closed cell foam covered in protective polyurethane elastomer. This makes them virtually unsinkable, even after suffering severe damage. An optional SB pick-up with a large loop handle can be attached, making retrieval of the strop easy.
Application: Anchorage Area, Harbor Park, Marina, Breeding Areas or Other Areas
Advantages of steel mooring buoy
good stability
long service life
high luminous efficiency
convenient installation and maintenance
high safety performance
energy saving and environmental protection
wind resistance
strong resistance to hail
economic and practical

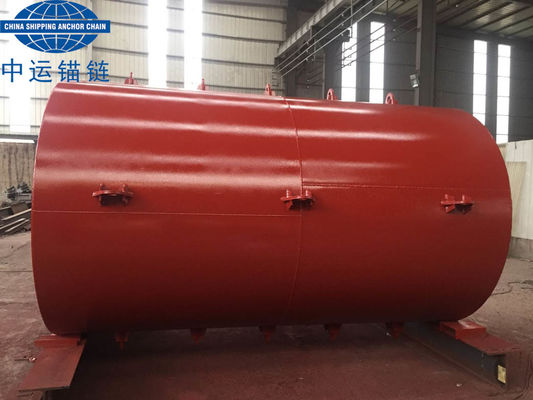

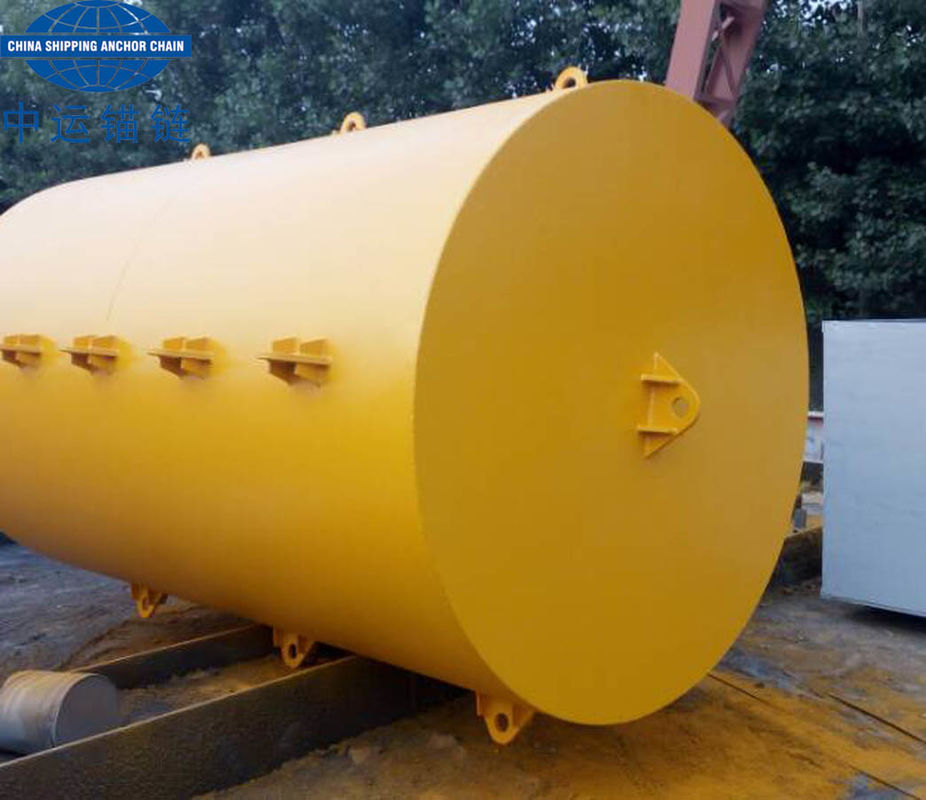

Cylinder Type Steel Mooring Buoy
Type | SMB1.5 | SMB2 | SMB3.3 | SMB3.5 | SMB4 |
Material | Marine Grade Steel | ||||
Diameter(mm) | 1500 | 2000 | 3300 | 3500 | 400 |
Height(mm) | 1000 | 1200 | 1800 | 2000 | 2200 |
Buoyancy(T) | 1 | 2 | 12 | 18 | 21 |
Suitable Water Depth(M) | 5~10 | 10~15 | 15~20 | 20~25 | 25~30 |
Suitable Ship Tonnage(T) | <1800 | <2000 | <8000 | <10000 | <15000 |
Specification | SBM1.5 | SBM2.0 | SBM3.3 | SBM3.7 | SBM4.0 |
Mooring Ring(m) | 0.4 | 0.5 | 0.6 | 0.6 | 0.6 |
Buoy Material | Ship Steel plate | ||||
Buoy Diameter(M) | 1.5 | 2 | 3.3 | 3.7 | 4.0 |
Buoy Height(m) | 1 | 1.2 | 1.8 | 2 | 2.2 |
Freeboard Height(m) | 0.7 | 0.8 | 1 | 1.2 | 1.5 |
Max. Swing Angle(degree) | 3~5 | ||||
Max Buoyancy(M) | 1.5 | 5 | 15 | 21 | 27.3 |
Static Buoyancy(T) | 1 | 2 | 12 | 18 | 21 |
Anchor System(mm) | 38 | 60 | 90 | 100 | 100 |
Sinker(t) | 2 | 2 | 3 | 5 | 8 |
Anchor(t) | 5 | 8 | 10 | 20 | 30 |
Suitable water depth(m) | 5~10 | 10~15 | 15~20 | 20~25 | 25~30 |
suitable ship tonnage(t) | <1800 | <2000 | <8000 | <10000 | <11000 |
Our Advantage
The mooring buoys are pecially designed for the mooring of vessels in the most economical way
A wide range of variable configurations and structural integrity to meet your design loads. ..
Custom Design: we offer OEM production as per clients' requirements.
BV/ABS/LR/SGG test certificate provided.
Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage. On the berth goods lightering work and maintenance and repair of ships can be conducted. Therefore, the mooring buoy is the important anchoring facility of the port.
The SPM is moored to the seabed using mooring arrangement which includes anchors, anchor chains, chain stoppers etc.
China Shipping Anchor Chain(Jiangsu)Co., Ltd Can offer you the OEM work for the whole system
The steel Mooring Buoy, The Anchor, The Anchor Chains, The Accessories and other equipment.
We supply all kinds of marine and offshore products for various vessels including VLCC, FSO, FPSO, LNGC, LPGC, Container Ships, Cargo Liners, Bulk Carriers, Oil Tankers and oil platform, from securing the order to final delivery, we work hard to make sure everything goes as required and with high standard quality.
With our experienced marketing and technical team, we aim to respond your product inquiries including services related within 2 working days. Your concern is our top priority. We aim to offer you with optimal, time and money saving options and decision making that bring you cost-effective business.
We supply all kinds of marine and offshore products, from securing the order to final delivery, we work hard to make sure everything goes as required and with high standard quality.
We are here to provide you with safe and reliable goods. Quality is always our main priority, our quality control program make sure that no defect or poor workmanship will be supplied. According to customer's requirement, our quality can meet the rules and standards of International Class Society such as LR, ABS, DNV, GL, BV, NK, KR, RINA, IRS and CCS.
With more than 10 years of experience in marine and offshore field, our marketing and technical team can assure you that we can understand your requirement well and deal with your inquiry professionally.
We cooperate with the reliable logistic partner, including land, air and sea to help us deliver the goods to your hand on time.
TAG: Mooring Buoys Steel Mooring Buoy Mooring Bouy Factory
