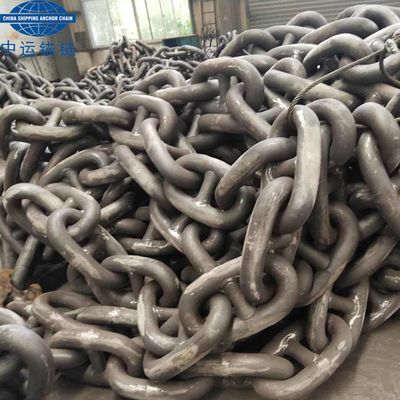

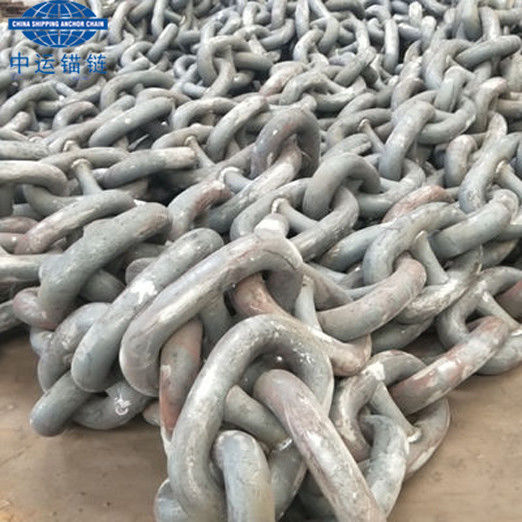

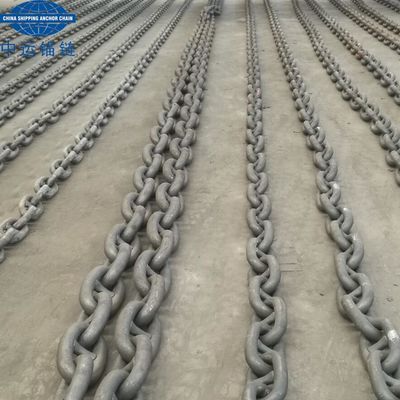

KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain

KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain
KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain

Large Image :  KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain

Product Details:
Place of Origin: China
Brand Name: China Shipping Anchor Chain
Certification: KR LR BV NK CCS ABS DNV-GL RMRS IRS RINA
Model Number: Mooring Anchor Chain
Payment & Shipping Terms:
Minimum Order Quantity: 50T
Price: 1480~1600USD
Packaging Details: Mooring Anchor Chain in bundle with steel wire rope nude packing
Delivery Time: 1~5days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 800T/month

KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain

Description
Size: 34~200mm Type: Studlink / Studless Mooring Anchor Chain
Useage: Mooring Anchor Chain Surface: Shot Blasting
Material: R3 R5 Grade Standard: ISO 1704 API
High Light:

R5 Mooring Anchor Chain

,

R5 Boat Mooring Chain

,

34mm Mooring Anchor Chain

KR LR BV CCS Approved Studlink Studless Mooring Anchor Chain



Mooring Anchor Chains are fabricated from R3 up to R5 – a material composition ideal for the offshore industry. The extremely high quality of the material makes these chains a perfect fit to meet your challenging offshore mooring requirements. Studlink offshore chains are available in black (tarred).

China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class

Chain Diameter R3 R3s R4
Stud/StudlessProof Load(kN) BreakingLoad
(kN)
Studless Proof Load(kN) StudProof Load(kN) Breaking Load(kN) Studless Proof Load(kN) Stud Proof Load(kN) Breaking Load(kN)
34 745 1065 831 859 1189 917 1031 1308
36 832 1189 928 960 1327 1024 1152 1461
38 923 1319 1030 1065 1473 1136 1278 1621
40 1019 1456 1136 1176 1626 1254 1411 1789
42 1119 1599 1248 1291 1786 1377 1549 1965
44 1223 1748 1364 1411 1952 1505 1693 2148
46 1331 1903 1485 1536 2124 1639 1843 2338
48 1444 2064 1610 1666 2304 1777 1999 2536
50 1560 2230 1740 1800 2490 1920 2160 2740
52 1681 2403 1875 1940 2683 2069 2327 2952
54 1806 2581 2014 2083 2882 2222 2500 3171
56 1934 2764 2157 2231 3086 2380 2677 3396
58 2066 2953 2304 2384 3297 2543 2860 3628
60 2202 3147 2456 2541 3514 2710 3049 3867
62 2342 3347 2612 2702 3737 2882 3242 4112
64 2485 3552 2771 2867 3966 3058 3440 4364
66 2632 3762 2935 3036 4200 3239 3644 4622
68 2782 3977 3103 3210 4440 3424 3852 4886
70 2936 4196 3274 3387 4686 3613 4065 5156
73 3173 4535 3539 3661 5064 3905 4393 5572
76 3417 4885 3812 3943 5454 4206 4731 6002
78 3584 5124 3998 4136 5721 4411 4963 6295
81 3841 5490 4284 4432 6130 4727 5318 6746
84 4104 5866 4578 4735 6550 5051 5682 7208
87 4374 6252 4879 5047 6981 5383 6056 7682
90 4651 6648 5187 5366 7423 5724 6439 8168
92 4838 6916 5397 5583 7723 5955 6699 8498
95 5125 7326 5717 5914 8180 6308 7096 9002
97 5320 7604 5934 6138 8491 6547 7366 9343
100 5616 8028 6264 6480 8964 6912 7776 9864
102 5817 8316 6489 6712 9285 7160 8055 10217
105 6123 8753 6830 7065 9774 7536 8478 10755
107 6330 9049 7061 7304 10104 7791 8765 11118
111 6751 9650 7530 7789 10775 8309 9347 11857
114 7072 10109 7888 8160 11288 8704 9792 12421
117 7398 10575 8251 8536 11808 9105 10243 12993
120 7728 11047 8620 8917 12335 9511 10700 13573
122 7951 11365 8868 9174 12690 9785 11008 13964
124 8175 11686 9118 9433 13048 10062 11319 14358
127 8515 12172 9498 9825 13591 10480 11790 14956
130 8859 12663 9881 10222 14140 10903 12266 15559
132 9090 12994 10139 10488 14509 11188 12586 15965
137 9674 13829 10791 11163 15442 11907 13395 16992
142 10268 14677 11452 11847 16389 12637 14217 18034
147 10869 15536 12123 12541 17348 13377 15049 19089
152 11476 16405 12800 13242 18318 14125 15890 20157
157 12090 17282 13485 13950 19297 14880 16740 21235
162 12708 18166 14175 14664 20284 15641 17596 22321



MOORING CHAINS PROOF & BREAKING TEST LOADS

WEIGHT & LENGTH OVER 5 LINKS TABLET

Test Load, in kN Grade R3 Stud Link Grade R3S Stud Link Grade R4 Stud Link Grade R4S Stud Link Grade R5 Stud Link
Proof 0.0148 d2 (44 – 0.08d) 0.0180 d2 (44 – 0.08d) 0.0216 d2 (44 – 0.08d) 0.0240 d2 (44 – 0.08d) 0.0251 d2 (44 – 0.08d)
Break 0.0223 d2 (44 – 0.08d) 0.0249 d2 (44 – 0.08d) 0.0274 d2 (44 – 0.08d) 0.0304 d2 (44 – 0.08d) 0.0320 d2 (44 – 0.08d)
Test Load, in kN Grade R3 Studless Grade R3S Studless Grade R4 Studless Grade R4S Studless Grade R5 Studless
Proof 0.0148 d2 (44 – 0.08d) 0.0174 d2 (44 – 0.08d) 0.0192 d2 (44 – 0.08d) 0.0213 d2 (44 – 0.08d) 0.0223 d2 (44 – 0.08d)
Break 0.0223 d2 (44 – 0.08d) 0.0249 d2 (44 – 0.08d) 0.0274 d2 (44 – 0.08d) 0.0304 d2 (44 – 0.08d) 0.0320 d2 (44 – 0.08d)
Chain Weight, in kg/m Stud link = 0.0219d2
Chain Weight, in kg/m Studless chain
Weight calculations for each design are to be submitted.
Pitch Length Five Link Measure
Minimum 22d
Maximum 22.55d
*Note: data refers to IACS Offshore Mooring Chain Rules



MOORING CHAINS MECHANICAL PROPERTIES

Grade Yield stress N/mm2 minimum (1) Tensile strength N/mm2 minimum (1) Elongation % minimum Reduction (3) of area % minimum Charpy V-notch impact tests
Test temperature °C (2) Average energy J minimum Avg. energy flash weld J minimum
R3 410 690 17 50 0 -20 60 40 50 30
R3S 490 770 15 50 0 -20 65 45 53 33
R4 580 860 12 50 -20 50 36
R4S(4) 700 960 12 50 -20 56 40
R5(4) 760 1000 12 50 -20 58 42
*NOTES
1. Aim value of yield to tensile ratio: 0.92 max.
2. At the option of the Classification Society the impact test of Grade R3 and R3S may becarried out at either 0°C or minus 20°C
3. Reduction of area of cast steel is to be for Grades R3 and R3S: min. 40 %, for R4, R4Sand R5: min. 35 %, cf. item 2.4.4.
4. Aim maximum hardness for R4S is HB330 and R5 HB340.



Mooring Chains Technical Date
