Product Details:
|
Size: | 300~30000kg | Type: | High Holding Power Anchor |
---|---|---|---|
Useage: | AC-14 Anchor | Certificate: | DNV-GL, ABS, LRS, BV, KR, NK, RS, IRS, RINA, CCS |
Material: | High Strength Steel | Anchor: | Danforth Anchor |
High Light: | IRS ABS High Holding Power Anchors,ODM High Holding Power Anchors,IACS Danforth Anchor |

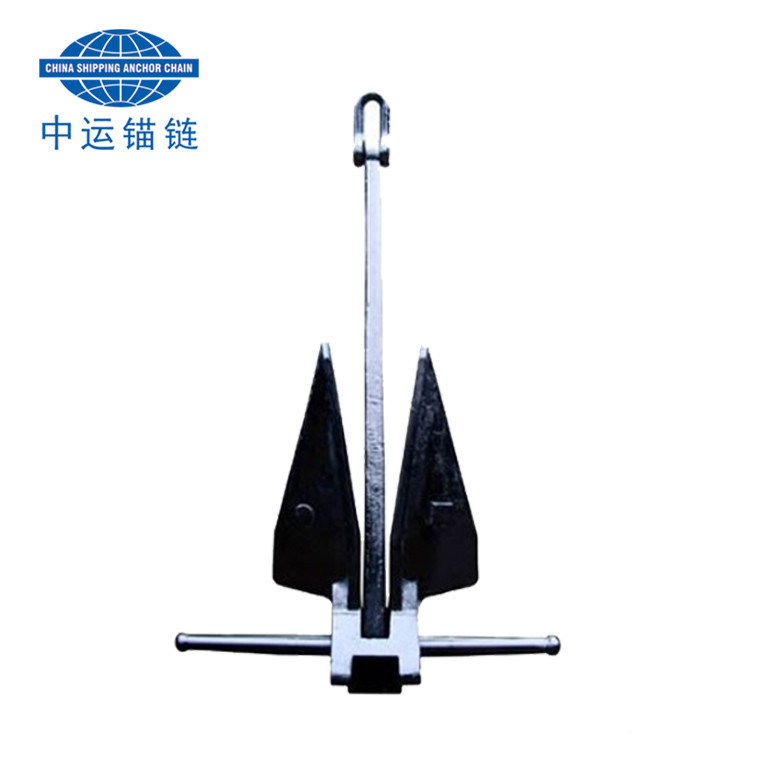

Danforth HHP Anchor High Holding Power Anchor
The DANFORTH anchor is a High Holding Power stock anchor. High Holding Power means you can reduce 25% of the weight that would normally be required for conventional anchors. The big ones used to be supplied to rigs/dredgers and fixed moorings. This type of anchor is being replaced by other types of mooring anchors in the last 40 years, but still available in certain weights.
Features:
Its lightweight and compact flat design make it easy to retrieve and relatively easy to store
Can be disassembled for storage and it features an adjustable 32° and 45° shank/fluke angle to improve holding capability in common sea bottoms such as hard sand and soft mud
Product Details:
Nominal weight | A | B | C | D | E | F |
kg | mm | mm | mm | mm | mm | mm |
20 | 121 | 243 | 526 | 373 | 614 | 166 |
25 | 130 | 262 | 566 | 401 | 661 | 179 |
30 | 138 | 279 | 602 | 427 | 703 | 190 |
40 | 152 | 307 | 662 | 470 | 774 | 209 |
50 | 164 | 330 | 713 | 506 | 833 | 225 |
60 | 174 | 351 | 758 | 538 | 886 | 239 |
75 | 187 | 378 | 817 | 579 | 954 | 258 |
100 | 206 | 416 | 899 | 637 | 1050 | 284 |
120 | 219 | 442 | 955 | 677 | 1116 | 301 |
135 | 228 | 460 | 993 | 704 | 1160 | 314 |
150 | 236 | 477 | 1029 | 730 | 1202 | 325 |
200 | 260 | 525 | 1133 | 803 | 1323 | 357 |
250 | 280 | 565 | 1220 | 865 | 1425 | 385 |
276 | 289 | 584 | 1261 | 894 | 1473 | 398 |
300 | 298 | 600 | 1296 | 919 | 1514 | 409 |
400 | 327 | 661 | 1427 | 1012 | 1667 | 450 |
500 | 353 | 712 | 1537 | 1090 | 1795 | 485 |
750 | 404 | 815 | 1760 | 1248 | 2055 | 555 |
1000 | 444 | 897 | 1937 | 1373 | 2262 | 611 |
1250 | 479 | 966 | 2086 | 1479 | 2437 | 548 |
1500 | 509 | 1027 | 2217 | 1572 | 2589 | 700 |
2000 | 560 | 1130 | 2440 | 1730 | 2850 | 770 |
2500 | 605 | 1217 | 2628 | 1864 | 3070 | 830 |
2655 | 615 | 1242 | 2682 | 1901 | 3132 | 846 |
2835 | 629 | 1269 | 2741 | 1943 | 3201 | 865 |
3040 | 644 | 1299 | 2805 | 1989 | 3277 | 885 |
3240 | 658 | 1327 | 2866 | 2032 | 3347 | 904 |
3445 | 671 | 1355 | 2925 | 2074 | 3416 | 923 |
3670 | 686 | 1383 | 2987 | 2118 | 3489 | 943 |
3940 | 702 | 1417 | 3059 | 2169 | 3573 | 965 |
4210 | 718 | 1448 | 3127 | 2217 | 2653 | 987 |
4500 | 734 | 1481 | 3197 | 2267 | 3735 | 1009 |
4840 | 752 | 1517 | 3276 | 2323 | 3826 | 1034 |
5175 | 769 | 1551 | 3350 | 2375 | 3913 | 1057 |
5515 | 785 | 1585 | 3422 | 2426 | 3997 | 1080 |
5850 | 801 | 1616 | 3424 | 2474 | 3999 | 1101 |
6225 | 818 | 1650 | 3563 | 2526 | 4161 | 1124 |
6525 | 831 | 1676 | 3619 | 2566 | 4227 | 1142 |
6975 | 849 | 1714 | 3700 | 2624 | 4322 | 1168 |
7425 | 867 | 1750 | 3778 | 2679 | 4413 | 1192 |
7875 | 884 | 1784 | 3853 | 2732 | 4500 | 1216 |
8325 | 901 | 1818 | 3925 | 2783 | 4585 | 1239 |
8775 | 917 | 1850 | 3994 | 2832 | 4666 | 1261 |
9225 | 932 | 1881 | 4062 | 2880 | 4744 | 1282 |
9675 | 947 | 1911 | 4127 | 2926 | 4820 | 1302 |
10125 | 962 | 1940 | 4190 | 2971 | 4894 | 1322 |
10575 | 976 | 1969 | 4251 | 3014 | 4965 | 1341 |
11025 | 989 | 1996 | 4310 | 3056 | 5035 | 1360 |
11550 | 1005 | 2027 | 4378 | 3104 | 5113 | 1381 |
12075 | 1020 | 2058 | 4443 | 3150 | 5190 | 1402 |
12675 | 1036 | 2091 | 4515 | 3201 | 5274 | 1425 |
13350 | 1054 | 2128 | 4594 | 3257 | 5366 | 1450 |
14100 | 1074 | 2167 | 4679 | 3317 | 5465 | 1476 |
15000 | 1096 | 2212 | 4776 | 3386 | 5579 | 1507 |
15400 | 1106 | 2231 | 4818 | 3416 | 5628 | 1521 |
16125 | 1123 | 2266 | 4893 | 3469 | 5715 | 1544 |
17250 | 1148 | 2317 | 5004 | 3548 | 5845 | 1579 |
18375 | 1173 | 2367 | 5110 | 3623 | 5969 | 1613 |
19500 | 1196 | 2414 | 5213 | 3696 | 6089 | 1645 |
20625 | 1219 | 2460 | 5311 | 3766 | 6203 | 1676 |
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
And we keep some anchor in stock with LR / NK cert.
TAG: Danforth HHP Anchor Danforth Anchor with IACS cert. High Holding Power Anchor
