Product Details:
|
| Size: | 22~90MM | Grade: | U2 |
|---|---|---|---|
| Standard: | ISO 1704 | Surface: | Galvanized |
| Production: | Flash Butt Welded | Packing: | Nude Packing Or Ton Bags |
| High Light: | Mooring Galvanized Anchor Chain,Tarred Galvanized Steel Chain Link,Tarred Galvanized Anchor Chain |
||
Grade U2 Galvanized Anchor Chain Manufactuer China Shipping Anchor Chain

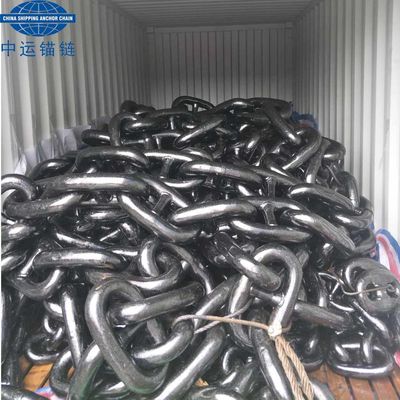

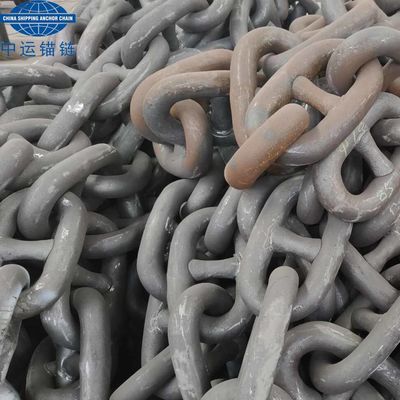

Anchor chains are produced to ISO 1704 standards. Used for anchor and mooring chains, the most common used are stud link anchor chain, stud link anchor chains have a central stud for extra strength. Studlink anchor chains are available in various grades from grade 2 up to grade 3. The studlink anchor chain in grade 2 and grade 3 are the most used anchor chains for commercial shipping. The difference between grade 2 and grade 3 is the additional heat treatment process after manufacturing of the anchor chain that upgrades the quality. Studlink chains are available in black (tarred), galvanised and stainless steel.
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
Galvanized Anchor Chain
| Diameter | CHAIN LINK SIZE | Grade 2 | Grade 3 | Grade 4 | |||||
| U2 OPEN LINK CHAIN | U3 OPEN LINK CHAIN | U4 OPEN LINK CHAIN | |||||||
| OUTSIDE LENGTH | OUTSIDE WIDTH | PROOF LOAD | BREAKING LOAD | PROOF LOAD | BREAKINGLOAD | PROOF LOAD | BREAKINGLOAD | ||
| MM | MM | KN | KN | KN | KN | KN | KN | ||
| 22 | 7/8 | 132 | 79 | 125.4 | 250.9 | 174.7 | 349.4 | ||
| 24 | 15/16 | 144 | 86 | 149.9 | 298.9 | 207.9 | 415.8 | ||
| 26 | 1-1/16 | 156 | 94 | 175.4 | 350.8 | 244 | 488 | ||
| 28 | 1-1/8 | 168 | 101 | 203.8 | 406.7 | 283 | 566 | ||
| 30 | 1-3/16 | 180 | 108 | 234.2 | 467.5 | 324.9 | 649.8 | 652 | 933 |
| 32 | 1-1/4 | 192 | 115 | 265.6 | 531.2 | 359.6 | 739.3 | 739 | 1057 |
| 34 | 1-5/16 | 204 | 122 | 299.9 | 599.8 | 417.3 | 834.6 | 831 | 1189 |
| 36 | 1-7/16 | 216 | 130 | 336.1 | 672.3 | 467.8 | 935.7 | 928 | 1327 |
| 38 | 1-1/2 | 228 | 137 | 374.4 | 748.7 | 521.3 | 1042.5 | 1030 | 1473 |
| 40 | 1-9/16 | 240 | 144 | 414.5 | 829.1 | 577.6 | 1155.2 | 1136 | 1626 |
| 42 | 1-5/8 | 252 | 154 | 457.7 | 915.3 | 636.8 | 1273.6 | 1248 | 1786 |
| 44 | 1-3/4 | 264 | 158 | 502.7 | 999.6 | 698.9 | 1397.8 | 1364 | 1952 |
| 46 | 1-13/16 | 276 | 166 | 548.8 | 1097.6 | 793.9 | 1527.8 | 1485 | 2125 |
| 48 | 1-7/8 | 288 | 173 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1610 | 2304 |
| 50 | 2 | 300 | 180 | 648.8 | 1293.6 | 902.5 | 1805 | 1740 | 2490 |
| 52 | 2-1/16 | 312 | 177 | 696.8 | 1393.6 | 972.2 | 1944.5 | 1875 | 2683 |
| 54 | 2-1/8 | 324 | 184 | 748.4 | 1496.8 | 1044.3 | 2088.5 | 2014 | 2882 |
| 56 | 2-3/16 | 336 | 191 | 801.6 | 1603.2 | 1118.5 | 2237 | 2157 | 3086 |
| 58 | 2-5/16 | 348 | 198 | 856.4 | 1712.8 | 1195 | 2390 | 2304 | 3297 |
| 60 | 2-3/8 | 360 | 204 | 912.8 | 1825.5 | 1273.6 | 2547.2 | 2456 | 3514 |
| 62 | 2-7/16 | 372 | 211 | 970.7 | 1941.3 | 1354.4 | 2708.8 | 2612 | 3737 |
| 64 | 2-1/2 | 384 | 218 | 1030.1 | 2060.1 | 1437.3 | 2874.5 | 2771 | 3966 |
| 66 | 2-9/16 | 396 | 225 | 1090.9 | 2181.8 | 1522.2 | 3044.4 | 2935 | 4200 |
| 68 | 2-11/16 | 408 | 232 | 1153.3 | 2306.5 | 1609.2 | 3218.3 | 3103 | 4440 |
| 70 | 2-3/4 | 420 | 238 | 1217 | 2434 | 1698.2 | 3396.3 | 3274 | 4686 |
| 73 | 2-7/8 | 438 | 248 | 1315.3 | 2630.6 | 1835.3 | 3670.6 | 3539 | 5064 |
| 76 | 3 | 456 | 239 | 1416.7 | 2833.3 | 1976.7 | 3956.4 | 3812 | 5454 |
| 78 | 3-1/16 | 468 | 266 | 1485.9 | 2971.8 | 2073.3 | 4146.7 | 3998 | 5721 |
| 81 | 3-3/16 | 486 | 276 | 1592.2 | 3184.4 | 2221.7 | 4443.4 | 4284 | 6130 |
| 84 | 3-5/16 | 504 | 286 | 1701.4 | 3402.8 | 2374 | 4748 | 4587 | 6550 |
| 87 | 3-7/16 | 522 | 296 | 1813.3 | 3626.7 | 2530.2 | 5060.4 | 4879 | 6981 |
| 90 | 3-9/16 | 540 | 306 | 1928 | 3856 | 2690.2 | 5380.3 | 5187 | 7423 |
| Nominal Diameter (mm) | Proof Test Load (kN) | Breaking Test Load (kN) | Nominal Diameter (mm) | Proof Test Load (kN) | Breaking Test Load (kN) | ||||||||
| Grade 2 | Grade 3 | Grade 4 | Grade 2 | Grade 3 | Grade 4 | Grade 2 | Grade 3 | Grade 4 | Grade 2 | Grade 3 | Grade 4 | ||
| 17.5 | 127 | 179 | 179 | 256 | 76 | 2150 | 3010 | 3943 | 3010 | 4300 | 5454 | ||
| 19 | 150 | 211 | 211 | 301 | 78 | 2260 | 3160 | 4136 | 3160 | 4500 | 5721 | ||
| 20.5 | 175 | 244 | 244 | 349 | 81 | 2410 | 3380 | 4432 | 3380 | 4820 | 6130 | ||
| 22 | 200 | 280 | 280 | 401 | 84 | 2580 | 3610 | 4735 | 3610 | 5160 | 6550 | ||
| 24 | 237 | 332 | 332 | 476 | 87 | 2750 | 3850 | 5047 | 3850 | 5500 | 6981 | ||
| 26 | 278 | 389 | 389 | 556 | 90 | 2920 | 4090 | 5366 | 4090 | 5840 | 7423 | ||
| 28 | 321 | 449 | 449 | 642 | 92 | 3040 | 4260 | 5583 | 4260 | 6080 | 7723 | ||
| 30 | 368 | 514 | 674 | 514 | 735 | 933 | 95 | 3230 | 4510 | 5914 | 4510 | 6440 | 8180 |
| 32 | 417 | 583 | 764 | 583 | 833 | 1057 | 97 | 3340 | 4680 | 6138 | 4680 | 6690 | 8491 |
| 34 | 468 | 655 | 859 | 655 | 937 | 1189 | 100 | 3530 | 4940 | 6480 | 4940 | 7060 | 8964 |
| 36 | 523 | 732 | 960 | 732 | 1050 | 1327 | 102 | 3660 | 5120 | 6712 | 5120 | 7320 | 9285 |
| 38 | 581 | 812 | 1065 | 812 | 1160 | 1473 | 105 | 3850 | 5390 | 7065 | 5390 | 7700 | 9774 |
| 40 | 640 | 896 | 1176 | 896 | 1280 | 1626 | 107 | 3980 | 5570 | 7304 | 5570 | 7960 | 10104 |
| 42 | 703 | 981 | 1291 | 981 | 1400 | 1786 | 111 | 4250 | 5940 | 7789 | 5940 | 8480 | 10775 |
| 44 | 769 | 1080 | 1411 | 1080 | 1540 | 1952 | 114 | 4440 | 6230 | 8160 | 6230 | 8890 | 11288 |
| 46 | 837 | 1170 | 1536 | 1170 | 1680 | 2125 | 117 | 4650 | 6510 | 8536 | 6510 | 9300 | 11808 |
| 48 | 908 | 1270 | 1666 | 1270 | 1810 | 2304 | 120 | 4850 | 6810 | 8917 | 6810 | 9720 | 12335 |
| 50 | 981 | 1370 | 1800 | 1370 | 1960 | 2490 | 122 | 5000 | 7000 | 9174 | 7000 | 9990 | 12690 |
| 52 | 1060 | 1480 | 1940 | 1480 | 2110 | 2683 | 124 | 5140 | 7200 | 9433 | 7200 | 10280 | 13048 |
| 54 | 1140 | 1590 | 2083 | 1590 | 2270 | 2882 | 127 | 5350 | 7490 | 9825 | 7490 | 10710 | 13591 |
| 56 | 1220 | 1710 | 2231 | 1710 | 2430 | 3086 | 130 | 5570 | 7800 | 10222 | 7800 | 11140 | 14140 |
| 58 | 1290 | 1810 | 2384 | 1810 | 2600 | 3297 | 132 | 5720 | 8000 | 10488 | 8000 | 11420 | 14509 |
| 60 | 1380 | 1940 | 2541 | 1940 | 2770 | 3514 | 137 | 6080 | 8510 | 11163 | 8510 | 12160 | 15442 |
| 62 | 1470 | 2060 | 2702 | 2060 | 2940 | 3737 | 142 | 6450 | 9030 | 11847 | 9030 | 12910 | 16389 |
| 64 | 1560 | 2190 | 2867 | 2190 | 3130 | 3966 | 147 | 6840 | 9560 | 12541 | 9560 | 13660 | 17348 |
| 66 | 1660 | 2310 | 3036 | 2312 | 3300 | 4200 | 152 | 7220 | 10100 | 13242 | 10100 | 14430 | 18318 |
| 68 | 1750 | 2450 | 3210 | 2450 | 3500 | 4440 | 157 | 7600 | 10640 | 13950 | 10640 | 15200 | 19297 |
| 70 | 1840 | 2580 | 3387 | 2580 | 3690 | 4686 | 162 | 7990 | 11180 | 14664 | 11180 | 15980 | 20284 |
| 73 | 1990 | 2790 | 3661 | 2790 | 3990 | 5064 | |||||||
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
