Product Details:
|
| Size: | 22~200mm | Type: | Studlink Anchor Chain |
|---|---|---|---|
| Standard: | ISO 1704 | Surface: | Shot Blasting |
| Material: | M1 M2 M3 M4 U1 U2 U3 M4 | Stock: | Keep Some Size In Stock Details Please Contact |
| High Light: | ISO 1704 Studlink Anchor Chain,IACS Studlink Anchor Chain,ISO 1704 Chain Stud Link |
||

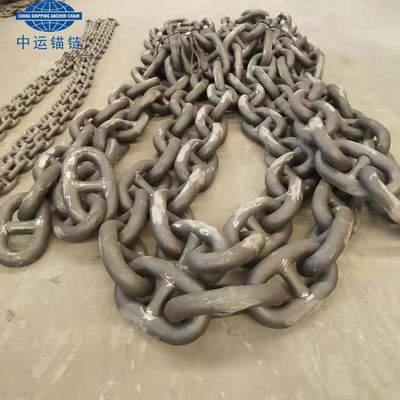

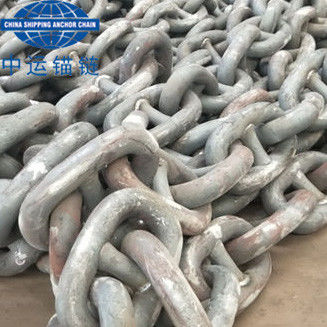

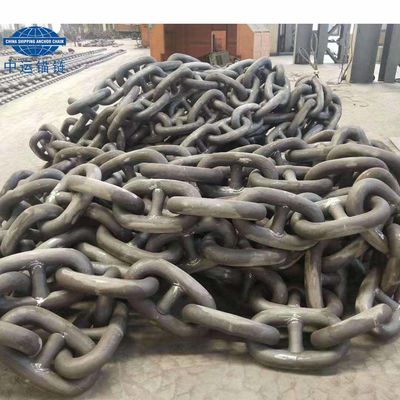

IACS Certificated In Stock For Sale Studlink Anchor Chain
Studlink Anchor Chain the most common chain used in Marine Industries. Its Commonly used for Moorings, Chafe Chains & Ballast applications.
| Type | Studlink Anchor Chain |
| Size | 50~122mm |
| Grade | Grade U3 |
| Certificate | LR BV CCS ABS.... |
| Delivery time | 1~5days |
| Supply | Zhoushan/Shanghai/Guangzhou/Zhangjiagang/Jiangyin/Qinghuangdao/Qingdao/ Rizhao/Yantai/Dalian/Shenzhen/Shekou/Qinzhou/SIngapore |
| Length | 27.5M / 55M |
| Quantity | 10~24length |
| Quality | with class certificate you can trust the quality |
| Guarrantee | more than one year warranty |
| Price | Factory supply directly with competitive price |
| Advantage | Located near changjiang river, with convenience transportation |
Also We can offer Install and cleaning a foul hawse service at all chinese port shipyard and in Singapore port, for some famous International Port we have local cooperator to offer one shop service.
With about 80 technicist and 50 experienced sales man we can offer you professional service.
Studlink Anchor Chain In Stock With IACS Cert For Sale
| Dia.(mm) | Grade 1 | Grade 2 | Grade 3 | |||
| Breaking Load (kN) | Proof Load | Breaking Load (kN) | Proof Load (kN) | Breaking Load (kN) | Proof Load (kN) | |
| 11 | 52 | 36 | 72 | 52 | 102 | 72 |
| 12.5 | 66 | 46 | 92 | 66 | 132 | 92 |
| 14 | 82 | 58 | 116 | 82 | 165 | 116 |
| 16 | 107 | 76 | 150 | 107 | 216 | 150 |
| 17.5 | 127 | 89 | 179 | 127 | 256 | 179 |
| 19 | 150 | 105 | 211 | 150 | 301 | 211 |
| 20.5 | 175 | 123 | 244 | 175 | 349 | 244 |
| 22 | 200 | 140 | 280 | 200 | 401 | 280 |
| 24 | 237 | 167 | 332 | 237 | 476 | 332 |
| 26 | 278 | 194 | 389 | 278 | 556 | 389 |
| 28 | 321 | 225 | 449 | 321 | 642 | 449 |
| 30 | 368 | 257 | 514 | 368 | 735 | 514 |
| 32 | 417 | 291 | 583 | 417 | 833 | 583 |
| 34 | 468 | 328 | 655 | 468 | 937 | 655 |
| 36 | 523 | 366 | 732 | 523 | 1050 | 732 |
| 38 | 581 | 406 | 812 | 581 | 1160 | 812 |
| 40 | 640 | 448 | 895 | 640 | 1280 | 895 |
| 42 | 703 | 492 | 981 | 703 | 1400 | 981 |
| 44 | 769 | 538 | 1080 | 769 | 1540 | 1080 |
| 46 | 837 | 585 | 1170 | 837 | 1680 | 1170 |
| 48 | 908 | 635 | 1270 | 908 | 1810 | 1270 |
| 50 | 981 | 686 | 1370 | 981 | 1960 | 1370 |
| 52 | 1060 | 739 | 1480 | 1060 | 2110 | 1480 |
| 54 | 1140 | 794 | 1590 | 1140 | 2270 | 1590 |
| 56 | 1220 | 851 | 1710 | 1220 | 2430 | 1710 |
| 58 | 1290 | 909 | 1810 | 1290 | 2600 | 1810 |
| 60 | 1380 | 969 | 1940 | 1380 | 2770 | 1940 |
| 62 | 1470 | 1030 | 2060 | 1470 | 2940 | 2060 |
| 64 | 1560 | 1100 | 2190 | 1560 | 3130 | 2190 |
| 66 | 1660 | 1160 | 2310 | 1660 | 3300 | 2310 |
| 68 | 1750 | 1230 | 2450 | 1750 | 3500 | 2450 |
| 70 | 1840 | 1290 | 2580 | 1840 | 3690 | 2580 |
| 73 | 1990 | 1390 | 2790 | 1990 | 3990 | 2790 |
| 76 | 2150 | 1500 | 3010 | 2150 | 4300 | 3010 |
| 78 | 2260 | 1580 | 3160 | 2260 | 4500 | 3160 |
| 81 | 2410 | 1690 | 3380 | 2410 | 4820 | 3380 |
| 84 | 2580 | 1800 | 3610 | 2580 | 5160 | 3610 |
| 87 | 2750 | 1920 | 3850 | 2750 | 5500 | 3850 |
| 90 | 2920 | 2050 | 4090 | 2920 | 5840 | 4090 |
| 92 | 3040 | 2130 | 4260 | 3040 | 6080 | 4260 |
| 95 | 3230 | 2260 | 4510 | 3230 | 6440 | 4510 |
| 97 | 3340 | 2340 | 4680 | 3340 | 6690 | 4680 |
| 100 | 3530 | 2470 | 4940 | 3530 | 7060 | 4940 |
| 102 | 3660 | 2560 | 5120 | 3660 | 7320 | 5120 |
| 105 | 3850 | 2700 | 5390 | 3850 | 7700 | 5390 |
| 107 | 3980 | 2790 | 5570 | 3980 | 7960 | 5570 |
| 111 | 4250 | 2970 | 5940 | 4250 | 8480 | 5940 |
| 114 | 4440 | 3110 | 6230 | 4440 | 8890 | 6230 |
| 117 | 4650 | 3260 | 6510 | 4650 | 9300 | 6510 |
| 120 | 4850 | 3400 | 6810 | 4850 | 9720 | 6810 |
| 122 | 5000 | 3500 | 7000 | 5000 | 9990 | 7000 |
| 124 | 5140 | 3600 | 7200 | 5140 | 10280 | 7200 |
| 127 | 5350 | 3750 | 7490 | 5350 | 10710 | 7490 |
| 130 | 5570 | 3900 | 7800 | 5570 | 11140 | 7800 |
| 132 | 5720 | 4000 | 8000 | 5720 | 11420 | 8000 |
| 137 | 6080 | 4260 | 8510 | 6080 | 12160 | 8510 |
| 142 | 6450 | 4520 | 9030 | 6450 | 12910 | 9030 |
| 147 | 6840 | 4790 | 9560 | 6840 | 13660 | 9560 |
| 152 | 7220 | 5050 | 10100 | 7220 | 14430 | 10100 |
| 157 | 7600 | 5320 | 10640 | 7600 | 15200 | 10640 |
| 162 | 7990 | 5590 | 11180 | 7990 | 15980 | 11180 |
