Product Details:
|
Size: | 300~30000kg | Type: | High Holding Power Anchor |
---|---|---|---|
Useage: | HHP MK5 Anchor | Certificate: | DNV-GL, ABS, LRS, BV, KR, NK, RS, IRS, RINA, CCS |
Material: | High Strength Steel | Anchor: | MK5 Anchor |
High Light: | MK5 Stainless Steel Concrete Anchors,MK5 Galvanized Concrete Anchors,IACS Stainless Steel Anchors |

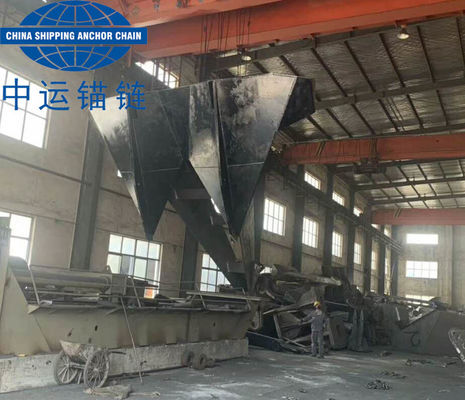

Stevshark MK5 Offshore Anchor High Holding Power Anchor
Also called Stevshark MK5 anchor, MK5 anchor, Drag anchor, Offshore anchor, Drag Embedment anchor,etc.Stevshark is another kind of offshore anchor. It does well in hard soils such as limestone, calcarenite, very dense sands and coral.There are also other types of offshore anchors such as Stevin anchor, Stevpris MK5 anchor, etc.
Stevshark MK5 Anchor has many adapted versions. Facilitates performance in hard soils such as limestone, calcarenite, very dense sands and coral. It has identical inherent qualities to the Stevpris Mk5, and its modifications include a stronger construction, shark teeth, sharp fluke edges and fluke tips. Optionally the hollow fluke can be ballasted to assist initial penetration.
Product Details:
High Holding Power Anchor
Widely used for Offshore and Fishing Farm projects;
Type: welding stockless
Material: high tensile steel plate
Color: Black, Yellow, Blue, Orange, Green
Weight from 300kg to 30000kg
Certificate: DNV-GL, ABS, LRS, BV, KR, NK, RS, IRS, RINA, CCS
Features:
MK5/MK6 Anchor is easy to handle, install and retrieve and is used to secure semi-submersible rigs and permanent installations.
MK 5/MK6 Anchor does well in hard soils such as limestone, calcarenite, very dense sands, and coral.
High Holding Power Anchor MK5 Type Date Sheet
Nonimal Weight(KG) | SIZE(MM) | |||||
A | B | C | E | F | H | |
300 | 1828 | 1968 | 1101 | 927 | 160 | 757 |
500 | 2040 | 2197 | 1233 | 1035 | 179 | 845 |
1000 | 2570 | 2770 | 1562 | 1304 | 226 | 1064 |
1500 | 2944 | 3174 | 1802 | 1495 | 261 | 1230 |
2000 | 3244 | 3494 | 1696 | 1646 | 285 | 1343 |
3000 | 3711 | 4001 | 2279 | 1886 | 332 | 1540 |
4000 | 4083 | 4403 | 2431 | 2074 | 359 | 1692 |
5000 | 4402 | 4746 | 2697 | 2238 | 396 | 1835 |
6000 | 4680 | 5040 | 2841 | 2374 | 411 | 1988 |
7000 | 4900 | 5280 | 3001 | 2490 | 443 | 2045 |
8000 | 5151 | 5553 | 3156 | 2619 | 464 | 2139 |
9000 | 5359 | 5772 | 3253 | 2719 | 471 | 2219 |
10000 | 5549 | 5932 | 3400 | 3822 | 501 | 2305 |
12000 | 5893 | 6353 | 3614 | 3000 | 533 | 2450 |
14000 | 6209 | 6694 | 3805 | 3159 | 562 | 2580 |
15000 | 6354 | 6850 | 3804 | 3232 | 575 | 2640 |
16000 | 6469 | 6967 | 3927 | 3282 | 569 | 2678 |
18000 | 6753 | 7280 | 4189 | 3436 | 612 | 2806 |
20000 | 6994 | 7540 | 4287 | 3559 | 634 | 2907 |
22000 | 7220 | 7784 | 4426 | 3674 | 654 | 3001 |
25000 | 7535 | 8123 | 4619 | 3834 | 684 | 3132 |
30000 | 3003 | 8635 | 4919 | 4075 | 727 | 3329 |
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
And we keep some anchor in stock with LR / NK cert.
