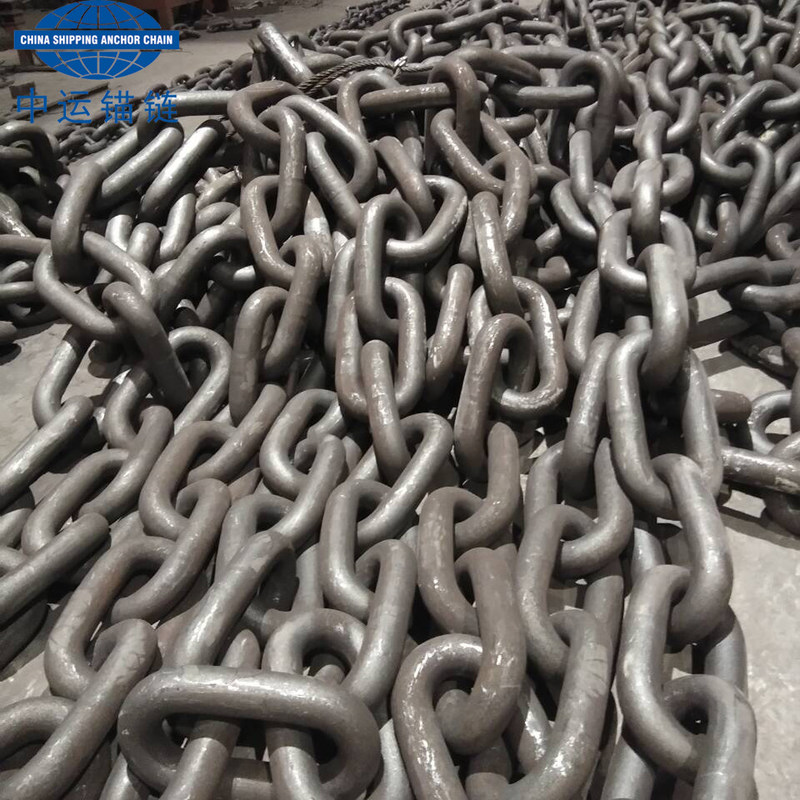

Stud Link Anchor Chain -China Shipping Anchor Chain

Stud Link Anchor Chain-China Shipping Anchor Chain

Studlink Anchor Chain mainly used for anchoring projects, normally know as two type stud link marine anchor chain studless marine anchor chain. Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.

Stud Link Anchor Chain Production : We use advanced Electric Welded Production Line,

Advanced technology, simple, low manufacturing cost, its quality over other types of anchor chain. At present it is widely used for sea ships.

Stud Link Anchor Chains should be made by flash butt welding as far as possible. Chain links are allowed to be made by drop forging or casting.The welding of the Stud shall be carried out only on the Links on the opposite side of the flash welded, and there shall be no visible gap between the two ends of the Stud and the Links; Welding shall be done by qualified welders with suitable materials; All welding shall be performed prior to the final heat treatment of the chain. After welding, there should be no defects that affect the performance of anchor chain.

Also We can offer Install and cleaning a foul hawse service at all chinese port shipyard and in Singapore port, for some famous International Port we have local cooperator to offer one shop service.

Stud link Anchor Chain Technical Data

China Shipping Anchor Chain (Jiangsu) Co., Ltd. Stud link Anchor Chain ,Ship Anchor Chain,Studlink Anchor Chain, Marine Stud link Anchor Chain manufacturer, factory Stockist for sale,DNV GL BV ABS LR CCS NK KR Class,

Stud Link Anchor Chain

China Largest Marine Stud Link Anchor Chain  Factory, Manufacturer, supplier, ship anchor chain cable for sale with KR LR BV NK ABS DNV RINA..all IACS members' certification

Anchor Chain is widely used on ships, Oil Rigs and Mooring System. China Shipping Anchor Chain supplies wide range sizes and grades,

Grade U1/U2 / U3/U4 from 22mm to 162mm; Grade ORQ / R3 /R3S / R4 from 34mm to 162mm

Manufacturing:   Stud link Anchor Chain ,Anchor Chain,Studlink Anchor Chain

We have more than 10 years experience in anchor chain production.

Our factory is ISO9001 approval, OSHMS18001 approval, ISO14001 approval, API approval and type approval by all IACS members.

Advantage manufacturing facilities:

Advanced program-controlled chain production line: No.5, No.6, No.7, No.8, No.9 and No. 11 chain production lines

Automatic heat treatment machine;

Automatic shot blasting machine:sandblasting to S2.5 + one layer of shop primer; special paint available on request

Quality Control Advantages:

Manufacturing process quality control from raw material to final product, we make our own tracking number in every production progress to ensure traceability.

Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.

Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.

Load test machine up to 4000Ton.

Stud link Anchor Chain ,Anchor Chain,Studlink Anchor Chain
