Product Details:
|
| Type: | Triplates | Useage: | Single Mooring Buoy System |
|---|---|---|---|
| Certificate: | BV ABS CCS LR | Material: | High Strength Marine Steel |
| Working Load: | 17T To 600T | Standard: | Standard Tri-Plate |
| Highlight: | 600T Steel Mooring Buoy,Triplates Steel Mooring Buoy,Triplets Pendant Buoy |
||

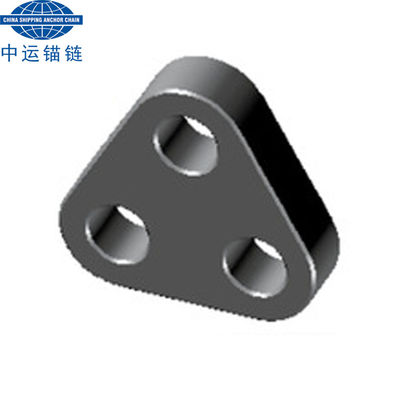

SWL 17~600T Black Painted Mooring System Standard Triplates
Triplate are commonly used in tow and bridle applications in the marine industry. These are standard items or can be manufactured to meet specified load criteria. Cortland stocks standard towing plates for marine use, but can provide custom.
Triplates and bifurcation plates for any purpose such as moorings lifting and towage.
| WLL | MBL | A | B | C | R | Weight |
| Ton | Ton | mm | mm | mm | mm | kg |
| 17 | 85 | 47 | 35 | 120 | 65 | 10 |
| 25 | 125 | 55 | 40 | 150 | 80 | 18 |
| 35 | 175 | 60 | 50 | 160 | 90 | 28 |
| 55 | 275 | 75 | 70 | 210 | 105 | 58 |
| 85 | 425 | 90 | 80 | 230 | 135 | 96 |
| 120 | 600 | 105 | 100 | 280 | 170 | 188 |
| 150 | 750 | 115 | 110 | 320 | 185 | 256 |
| 175 | 875 | 115 | 110 | 320 | 195 | 274 |
| 200 | 1000 | 140 | 120 | 390 | 215 | 390 |
| 250 | 1250 | 150 | 140 | 390 | 240 | 518 |
| 300 | 1500 | 160 | 150 | 420 | 250 | 617 |
| 400 | 2000 | 185 | 200 | 490 | 300 | 1170 |
| 500 | 2500 | 200 | 200 | 550 | 360 | 1619 |
| 600 | 3000 | 220 | 200 | 600 | 400 | 1972 |
Our Advantage
The mooring buoys are pecially designed for the mooring of vessels in the most economical way
A wide range of variable configurations and structural integrity to meet your design loads. ..
Custom Design: we offer OEM production as per clients' requirements.
BV/ABS/LR/SGG test certificate provided.
Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage. On the berth goods lightering work and maintenance and repair of ships can be conducted. Therefore, the mooring buoy is the important anchoring facility of the port.
The SPM is moored to the seabed using mooring arrangement which includes anchors, anchor chains, chain stoppers etc.
China Shipping Anchor Chain(Jiangsu)Co., Ltd Can offer you the OEM work for the whole system
The steel Mooring Buoy, The Anchor, The Anchor Chains, The Accessories and other equipment.
We supply all kinds of marine and offshore products for various vessels including VLCC, FSO, FPSO, LNGC, LPGC, Container Ships, Cargo Liners, Bulk Carriers, Oil Tankers and oil platform, from securing the order to final delivery, we work hard to make sure everything goes as required and with high standard quality.
With our experienced marketing and technical team, we aim to respond your product inquiries including services related within 2 working days. Your concern is our top priority. We aim to offer you with optimal, time and money saving options and decision making that bring you cost-effective business.
TAG: Mooring Triplates Black Painted Mooring Triplates
