Product Details:
|
| Size: | 22~90MM | Grade: | Grade U1 Grade U2 Grade U3 |
|---|---|---|---|
| Standard: | ISO 1704 | Surface: | Black Painted/Galvanized |
| Production: | Flash Butt Welded | Delivery: | 1~15days |
| High Light: | Hot Dip Galvanized Studless Anchor Chain,Length 55m Yacht Anchor Chain,Length 55m Studless Anchor Chain |
||

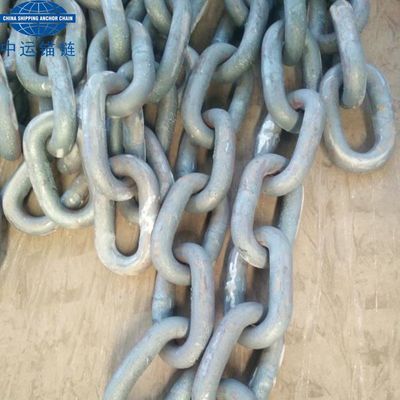

Studless Anchor Chain China Shipping Anchor Chain
Studless Anchor Chain are used for inshore moorings with instructions and restrictions related to the weather conditions. In case of offshore platform chains – they are operated constantly, regardless of the weather conditions
Grade 2 is prodused of alloy steel, and Grade 3 – alloy steel with subsequent heat treatment for higher quality. Surface of such chains can be coated with three typical methods: ZN – cold zinc coating.
Surface treatment: self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement
Normally the length 25M 27.5M 55M or other length as your required.
As a leading Anchor Chain Open Link Anchor Chain Studless Anchor Chain Studlink Anchor Chian factory offer quality reliable anchor chain with competitive price.
Production size from 22mm to 200mm
Production Certificate: ISO1704-2007; IACS W18 ; W22; API-2F; GBT549; KR; LR; BV; NK; CCS; ABS; DNV; GL; RMRS; RINA...
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
Studless Anchor Chain Technical Date
| Diameter | CHAIN LINK SIZE | Grade 2 | Grade 3 | Grade 4 | ||||
| U2 OPEN LINK CHAIN | U3 OPEN LINK CHAIN | U4 OPEN LINK CHAIN | ||||||
| OUTSIDE LENGTH | OUTSIDE WIDTH | PROOF LOAD | BREAKING LOAD | PROOF LOAD | BREAKINGLOAD | PROOF LOAD | BREAKINGLOAD | |
| MM | MM | KN | KN | KN | KN | KN | KN | |
| 22 | 132 | 79 | 125.4 | 250.9 | 174.7 | 349.4 | ||
| 24 | 144 | 86 | 149.9 | 298.9 | 207.9 | 415.8 | ||
| 26 | 156 | 94 | 175.4 | 350.8 | 244 | 488 | ||
| 28 | 168 | 101 | 203.8 | 406.7 | 283 | 566 | ||
| 30 | 180 | 108 | 234.2 | 467.5 | 324.9 | 649.8 | 652 | 933 |
| 32 | 192 | 115 | 265.6 | 531.2 | 359.6 | 739.3 | 739 | 1057 |
| 34 | 204 | 122 | 299.9 | 599.8 | 417.3 | 834.6 | 831 | 1189 |
| 36 | 216 | 130 | 336.1 | 672.3 | 467.8 | 935.7 | 928 | 1327 |
| 38 | 228 | 137 | 374.4 | 748.7 | 521.3 | 1042.5 | 1030 | 1473 |
| 40 | 240 | 144 | 414.5 | 829.1 | 577.6 | 1155.2 | 1136 | 1626 |
| 42 | 252 | 154 | 457.7 | 915.3 | 636.8 | 1273.6 | 1248 | 1786 |
| 44 | 264 | 158 | 502.7 | 999.6 | 698.9 | 1397.8 | 1364 | 1952 |
| 46 | 276 | 166 | 548.8 | 1097.6 | 793.9 | 1527.8 | 1485 | 2125 |
| 48 | 288 | 173 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1610 | 2304 |
| 50 | 300 | 180 | 648.8 | 1293.6 | 902.5 | 1805 | 1740 | 2490 |
| 52 | 312 | 177 | 696.8 | 1393.6 | 972.2 | 1944.5 | 1875 | 2683 |
| 54 | 324 | 184 | 748.4 | 1496.8 | 1044.3 | 2088.5 | 2014 | 2882 |
| 56 | 336 | 191 | 801.6 | 1603.2 | 1118.5 | 2237 | 2157 | 3086 |
| 58 | 348 | 198 | 856.4 | 1712.8 | 1195 | 2390 | 2304 | 3297 |
| 60 | 360 | 204 | 912.8 | 1825.5 | 1273.6 | 2547.2 | 2456 | 3514 |
| 62 | 372 | 211 | 970.7 | 1941.3 | 1354.4 | 2708.8 | 2612 | 3737 |
| 64 | 384 | 218 | 1030.1 | 2060.1 | 1437.3 | 2874.5 | 2771 | 3966 |
| 66 | 396 | 225 | 1090.9 | 2181.8 | 1522.2 | 3044.4 | 2935 | 4200 |
| 68 | 408 | 232 | 1153.3 | 2306.5 | 1609.2 | 3218.3 | 3103 | 4440 |
| 70 | 420 | 238 | 1217 | 2434 | 1698.2 | 3396.3 | 3274 | 4686 |
| 73 | 438 | 248 | 1315.3 | 2630.6 | 1835.3 | 3670.6 | 3539 | 5064 |
| 76 | 456 | 239 | 1416.7 | 2833.3 | 1976.7 | 3956.4 | 3812 | 5454 |
| 78 | 468 | 266 | 1485.9 | 2971.8 | 2073.3 | 4146.7 | 3998 | 5721 |
| 81 | 486 | 276 | 1592.2 | 3184.4 | 2221.7 | 4443.4 | 4284 | 6130 |
| 84 | 504 | 286 | 1701.4 | 3402.8 | 2374 | 4748 | 4587 | 6550 |
| 87 | 522 | 296 | 1813.3 | 3626.7 | 2530.2 | 5060.4 | 4879 | 6981 |
| 90 | 540 | 306 | 1928 | 3856 | 2690.2 | 5380.3 | 5187 | 7423 |
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
China Shipping Anchor Chain (Jiangsu) A leading Anchor Chain Stud Link Anchor Chain Marine Anchor Chain Mooring Anchor Chain Manufactuer Factory Supplier Wholesaler Stockist
We keep 50~122MM studlink anchor chain 27.5M/55M in stock about 16~24 length, any urgenlty inquiry please contact +86 17753210369
