Product Details:
|
| Size: | 22~200MM | Type: | Stud Link Anchor Chain |
|---|---|---|---|
| Production: | Flash Butt Welded | Surface: | Black Painted |
| Grade: | Grade U1 U2 U3 U4 | Stock: | Keep Some Size In Stock Details Please Contact |
| Delivery Time: | 1~15days | Production Capacity: | 300000T Annuel |
| Highlight: | Grade U2 Stud link Anchor Chain,Grade U2 Overhead Lifting Chain,162mm Stud link Anchor Chain |
||

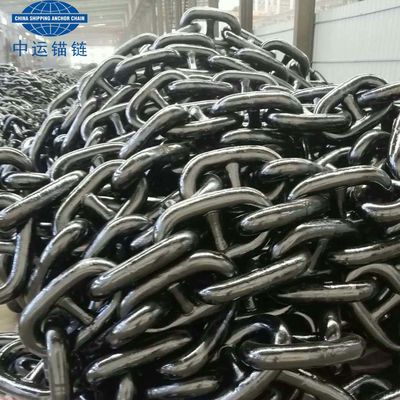

Stud Link Anchor Chain Factory-China Shipping Anchor Chain
Studlink Anchor Chain mainly used for anchoring projects, normally know as two type stud link marine anchor chain studless marine anchor chain. Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.
Stud Link Anchor Chain Production : We use advanced Electric Welded Production Line,
Advanced technology, simple, low manufacturing cost, its quality over other types of anchor chain. At present it is widely used for sea ships.
Stud Link Anchor Chains should be made by flash butt welding as far as possible. Chain links are allowed to be made by drop forging or casting.The welding of the Stud shall be carried out only on the Links on the opposite side of the flash welded, and there shall be no visible gap between the two ends of the Stud and the Links; Welding shall be done by qualified welders with suitable materials; All welding shall be performed prior to the final heat treatment of the chain. After welding, there should be no defects that affect the performance of anchor chain.
| Size | 16~162mm |
| Grade | Grade U3 U4 also there are Grade U1 U2 |
| Material | High Stength Steel Round Bar |
| Production Capacity | 2200T/month with 30sets flash But welded Line |
| Works | 100~150 skilled workers our workers is qualifed by IACS |
| Delivery time | 1~15days, we keep some in stock for details please check with our sales team |
| Certificate | KR LR BV NK CCS DNV GL ABS RMRS RINA... |
| Standard | Production accordingly to ISO 1704 GBT549 |
Also We can offer Install and cleaning a foul hawse service at all chinese port shipyard and in Singapore port, for some famous International Port we have local cooperator to offer one shop service.
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
Studlink Anchor Chain Technical Data
| Chain Size | Dimensions Inches | Grade 2 | Grade 3 | |||||
| Inches | MM | A | B | C | Proof | Break | Proof | Break |
| 5/8 | 16 | 3 3/4 | 2 1/4 | 13 3/4 | 23745 | 33220 | 33220 | 47465 |
| 3/4 | 19 | 4 1/2 | 2 5/8 | 16 1/2 | 34000 | 47600 | 47600 | 68000 |
| 13/16 | 21 | 4 7/8 | 2 7/8 | 17 7/8 | 39800 | 55700 | 55700 | 79500 |
| 7/8 | 22 | 5 1/4 | 3 1/8 | 19 1/4 | 46000 | 64400 | 64400 | 91800 |
| 15/16 | 24 | 5 5/8 | 3 5/16 | 20 5/8 | 52600 | 73700 | 73700 | 10500 |
| 1 | 25 | 6 | 3 9/16 | 22 | 59700 | 83600 | 83600 | 119500 |
| 1 1/16 | 27 | 6 3/8 | 3 3/4 | 23 3/8 | 67200 | 94100 | 94100 | 135000 |
| 1 1/8 | 29 | 6 3/4 | 4 | 24 3/4 | 75000 | 105000 | 105000 | 150000 |
| 1 3/16 | 30 | 7 1/8 | 4 1/4 | 26 1/8 | 83400 | 116500 | 116500 | 167000 |
| 1 1/4 | 32 | 7 1/2 | 4 1/2 | 27 1/2 | 92200 | 129000 | 129000 | 184000 |
| 1 5/16 | 33 | 7 7/8 | 4 3/4 | 28 7/8 | 101500 | 142000 | 142000 | 203000 |
| 1 3/8 | 34 | 8 1/4 | 4 15/16 | 30 1/4 | 111000 | 155000 | 155000 | 222000 |
| 1 7/16 | 36 | 8 5/8 | 5 3/16 | 31 5/8 | 120500 | 139000 | 139000 | 241000 |
| 1 1/2 | 38 | 9 | 5 3/8 | 33 | 131000 | 183500 | 183500 | 262000 |
| 1 9/16 | 40 | 9 3/8 | 5 5/8 | 34 3/8 | 142000 | 198500 | 198500 | 284000 |
| 1 5/8 | 42 | 9 3/4 | 5 7/8 | 35 3/4 | 153000 | 214000 | 214000 | 306000 |
| 1 11/16 | 43 | 10 1/8 | 6 1/16 | 37 1/8 | 166500 | 229000 | 229000 | 327000 |
| 1 3/4 | 44 | 10 1/2 | 6 5/16 | 38 1/2 | 176000 | 247000 | 247000 | 352000 |
| 1 13/16 | 46 | 10 7/8 | 6 1/2 | 39 7/8 | 188500 | 264000 | 264000 | 377000 |
| 1 7/8 | 48 | 11 1/4 | 6 3/4 | 41 1/4 | 201000 | 281000 | 281000 | 402000 |
| 1 15/16 | 50 | 11 5/8 | 7 | 42 5/8 | 214000 | 299000 | 299000 | 427000 |
| 2 | 51 | 12 | 7 3/16 | 44 | 227000 | 318000 | 318000 | 454000 |
| 2 1/16 | 52 | 12 3/8 | 7 7/16 | 45 3/8 | 241000 | 337000 | 337000 | 482000 |
| 2 1/8 | 54 | 12 3/4 | 7 5/8 | 46 3/4 | 255000 | 357000 | 357000 | 510000 |
| 2 3/16 | 56 | 13 1/8 | 7 7/8 | 48 1/8 | 269000 | 377000 | 377000 | 538000 |
| 2 1/4 | 58 | 13 1/2 | 8 1/8 | 49 1/2 | 284000 | 396000 | 396000 | 570000 |
| 2 5/16 | 59 | 13 7/8 | 8 5/16 | 50 7/8 | 299000 | 418000 | 418000 | 598000 |
| 2 3/8 | 60 | 14 1/4 | 8 9/16 | 52 1/4 | 314000 | 440000 | 440000 | 628000 |
| 2 7/16 | 62 | 14 5/8 | 8 3/4 | 53 5/8 | 330000 | 462000 | 462000 | 660000 |
| 2 1/2 | 64 | 15 | 9 | 55 | 346000 | 484000 | 484000 | 692000 |
| 2 9/16 | 66 | 15 3/8 | 9 1/4 | 56 3/8 | 363000 | 507000 | 507000 | 726000 |
| 2 5/8 | 67 | 15 3/4 | 9 7/16 | 57 3/4 | 379000 | 530000 | 530000 | 758000 |
| 2 11/16 | 68 | 16 1/8 | 9 11/16 | 59 1/8 | 396000 | 554000 | 554000 | 792000 |
| 2 3/4 | 70 | 14 1/2 | 9 7/8 | 60 1/2 | 413000 | 578000 | 578000 | 826000 |
| 2 13/16 | 71 | 14 7/8 | 10 1/8 | 61 7/8 | 431000 | 603000 | 603000 | 861000 |
| 2 7/8 | 73 | 17 1/4 | 10 3/8 | 63 1/4 | 449000 | 628000 | 628000 | 897000 |
| 2 15/16 | 75 | 17 5/8 | 10 9/16 | 64 5/8 | 467000 | 654000 | 654000 | 934000 |
| 3 | 76 | 18 | 10 13/16 | 66 | 485000 | 679000 | 679000 | 970000 |
| 3 1/16 | 78 | 18 3/8 | 11 | 67 3/8 | 504000 | 705000 | 705000 | 1008000 |
| 3 1/8 | 79 | 18 3/4 | 11 1/4 | 68 3/4 | 523000 | 732000 | 732000 | 1046000 |
| 3 3/16 | 81 | 19 1/8 | 11 1/2 | 70 1/8 | 542000 | 759000 | 759000 | 1084000 |
| 3 1/4 | 83 | 19 1/2 | 11 11/16 | 71 1/2 | 562000 | 787000 | 787000 | 1124000 |
| 3 5/16 | 84 | 19 7/8 | 11 15/16 | 72 7/8 | 582000 | 814000 | 814000 | 1163000 |
| 3 3/8 | 86 | 20 1/4 | 12 1/8 | 74 1/4 | 602000 | 843000 | 843000 | 1240000 |
| 3 7/16 | 87 | 20 5/8 | 12 3/8 | 75 5/8 | 622000 | 871000 | 871000 | 1244000 |
| 3 1/2 | 90 | 21 | 12 5/8 | 77 | 643000 | 900000 | 900000 | 1285000 |
| 3 5/8 | 92 | 21 3/4 | 12 15/16 | 79 3/4 | 685000 | 958000 | 958000 | 1369000 |
| 3 3/4 | 95 | 22 1/2 | 13 3/8 | 82 1/2 | 728000 | 101900 | 101900 | 1455000 |
| 3 7/8 | 98 | 23 1/4 | 14 | 85 1/4 | 772000 | 1080000 | 1080000 | 1543000 |
| 4 | 102 | 24 | 14 3/8 | 88 | 816000 | 1143000 | 1143000 | 1632000 |
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
Stud Link Anchor Chain Factory Manufacture Supplier Wholesaler Anchor Chain Marine Anchor Chain with KR LR BV NK CCS RMRS RINA DNV ABS GL
Also can offer High Holding Power Anchor Stockless Anchor AC-14 Anchor, MK5 Anchor, Flipper Delta Anchor, Danforth Anchor, Pool Anchor, SpekAnchor, Hall Anchor
