Product Details:
|
Size: | 16~200mm | Model Type: | End Joining Shackle |
---|---|---|---|
Useage: | Anchor Chain Fittings | Surface: | Shot Blasting |
Material: | M1 M2 M3 M4 U1 U2 U3 M4 | Standard: | ISO 1704 |
Certificate: | KR LR BV NK ABS DNV GL RMRS CCS RINA | Treatment: | Drop Forged Cast |
Highlight: | Black Painted End Joining Shackle,Forged Steel Safety Bow Shackle,Forged Steel End Joining Shackle |

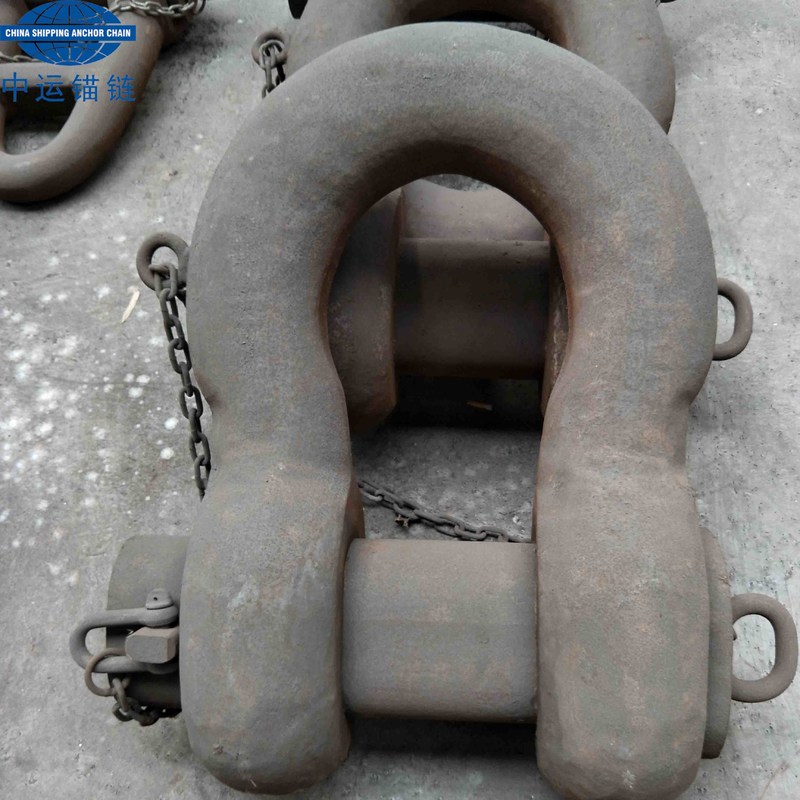

Buoy Shackle With IACS cert. Black painted Anchor Chain Fittings
Buoy Shackle is one type of shackles which is used to connect anchor chains to the mooring buoys.
The body of type A mooring buoy shackle has two legs which are connected by a strust. This type of buoy shackle is connected to the common link of anchor chain with a kenter type joining shackle.
Type B mooring buoy shackle is a bow type shackle. It is joined with the end link of anchor chians. Buoy shackle are made by forged steel or cast steel. It is applicable to the grade U2 Grade U3 anchor chains.
We supply all types of marine mooring shackles and other anchor chain accessories. If you are interested in our products, please do not hesitate to contact us wia an e-mail or a phone call.
Production Range: 16~200MM
Material: M1/M2/M3(U1/U2/U3)
Production time: 1~15 days
Production capacity: 2200T/month
Production Line: 3# 5# 6# 7# 8# 9# 11# production line heat treatment machine proof load test machine shot blasting machine
Factory Directly supply with competitive price.
Anchor Chain with KR LR BV NK CCS ABS DNV GL RMRS RINA .. cert. you can trust the quantity
Keep some stock can delivery in 1~3days.
Besides End shackel there are other type of Anchor Chain Accessories like Kenter Shackle Joining Shackle Anchor Swivel Shackle Type A&B Buoy Shackle A&B Swivel Swivel Group and so one
Buoy Shackle Anchor Chain Fittings Technical Date
Dia.(mm) | Grade 1 | Grade 2 | Grade 3 | |||
Breaking Load (kN) | Proof Load | Breaking Load (kN) | Proof Load (kN) | Breaking Load (kN) | Proof Load (kN) | |
11 | 52 | 36 | 72 | 52 | 102 | 72 |
12.5 | 66 | 46 | 92 | 66 | 132 | 92 |
14 | 82 | 58 | 116 | 82 | 165 | 116 |
16 | 107 | 76 | 150 | 107 | 216 | 150 |
17.5 | 127 | 89 | 179 | 127 | 256 | 179 |
19 | 150 | 105 | 211 | 150 | 301 | 211 |
20.5 | 175 | 123 | 244 | 175 | 349 | 244 |
22 | 200 | 140 | 280 | 200 | 401 | 280 |
24 | 237 | 167 | 332 | 237 | 476 | 332 |
26 | 278 | 194 | 389 | 278 | 556 | 389 |
28 | 321 | 225 | 449 | 321 | 642 | 449 |
30 | 368 | 257 | 514 | 368 | 735 | 514 |
32 | 417 | 291 | 583 | 417 | 833 | 583 |
34 | 468 | 328 | 655 | 468 | 937 | 655 |
36 | 523 | 366 | 732 | 523 | 1050 | 732 |
38 | 581 | 406 | 812 | 581 | 1160 | 812 |
40 | 640 | 448 | 895 | 640 | 1280 | 895 |
42 | 703 | 492 | 981 | 703 | 1400 | 981 |
44 | 769 | 538 | 1080 | 769 | 1540 | 1080 |
46 | 837 | 585 | 1170 | 837 | 1680 | 1170 |
48 | 908 | 635 | 1270 | 908 | 1810 | 1270 |
50 | 981 | 686 | 1370 | 981 | 1960 | 1370 |
52 | 1060 | 739 | 1480 | 1060 | 2110 | 1480 |
54 | 1140 | 794 | 1590 | 1140 | 2270 | 1590 |
56 | 1220 | 851 | 1710 | 1220 | 2430 | 1710 |
58 | 1290 | 909 | 1810 | 1290 | 2600 | 1810 |
60 | 1380 | 969 | 1940 | 1380 | 2770 | 1940 |
62 | 1470 | 1030 | 2060 | 1470 | 2940 | 2060 |
64 | 1560 | 1100 | 2190 | 1560 | 3130 | 2190 |
66 | 1660 | 1160 | 2310 | 1660 | 3300 | 2310 |
68 | 1750 | 1230 | 2450 | 1750 | 3500 | 2450 |
70 | 1840 | 1290 | 2580 | 1840 | 3690 | 2580 |
73 | 1990 | 1390 | 2790 | 1990 | 3990 | 2790 |
76 | 2150 | 1500 | 3010 | 2150 | 4300 | 3010 |
78 | 2260 | 1580 | 3160 | 2260 | 4500 | 3160 |
81 | 2410 | 1690 | 3380 | 2410 | 4820 | 3380 |
84 | 2580 | 1800 | 3610 | 2580 | 5160 | 3610 |
87 | 2750 | 1920 | 3850 | 2750 | 5500 | 3850 |
90 | 2920 | 2050 | 4090 | 2920 | 5840 | 4090 |
92 | 3040 | 2130 | 4260 | 3040 | 6080 | 4260 |
95 | 3230 | 2260 | 4510 | 3230 | 6440 | 4510 |
97 | 3340 | 2340 | 4680 | 3340 | 6690 | 4680 |
100 | 3530 | 2470 | 4940 | 3530 | 7060 | 4940 |
102 | 3660 | 2560 | 5120 | 3660 | 7320 | 5120 |
105 | 3850 | 2700 | 5390 | 3850 | 7700 | 5390 |
107 | 3980 | 2790 | 5570 | 3980 | 7960 | 5570 |
111 | 4250 | 2970 | 5940 | 4250 | 8480 | 5940 |
114 | 4440 | 3110 | 6230 | 4440 | 8890 | 6230 |
117 | 4650 | 3260 | 6510 | 4650 | 9300 | 6510 |
120 | 4850 | 3400 | 6810 | 4850 | 9720 | 6810 |
122 | 5000 | 3500 | 7000 | 5000 | 9990 | 7000 |
124 | 5140 | 3600 | 7200 | 5140 | 10280 | 7200 |
127 | 5350 | 3750 | 7490 | 5350 | 10710 | 7490 |
130 | 5570 | 3900 | 7800 | 5570 | 11140 | 7800 |
132 | 5720 | 4000 | 8000 | 5720 | 11420 | 8000 |
137 | 6080 | 4260 | 8510 | 6080 | 12160 | 8510 |
142 | 6450 | 4520 | 9030 | 6450 | 12910 | 9030 |
147 | 6840 | 4790 | 9560 | 6840 | 13660 | 9560 |
152 | 7220 | 5050 | 10100 | 7220 | 14430 | 10100 |
157 | 7600 | 5320 | 10640 | 7600 | 15200 | 10640 |
162 | 7990 | 5590 | 11180 | 7990 | 15980 | 11180 |
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
