Product Details:
|
Nominal Cable Diamete: | 12.7mm To 63.5mm | Model Type: | Forelock End Shackle |
---|---|---|---|
Useage: | Anchor Chain Fittings | Surface: | Shot Blasting |
Material: | M1 M2 M3 M4 U1 U2 U3 U4 | Standard: | ISO 1704 |
Certificate: | KR LR BV NK ABS DNV GL RMRS CCS RINA | Treatment: | Drop Forged Cast |
High Light: | 63.5mm Anchor Chain Fittings,ISO 1704 End Shackle,12.7mm Anchor Chain Fittings |

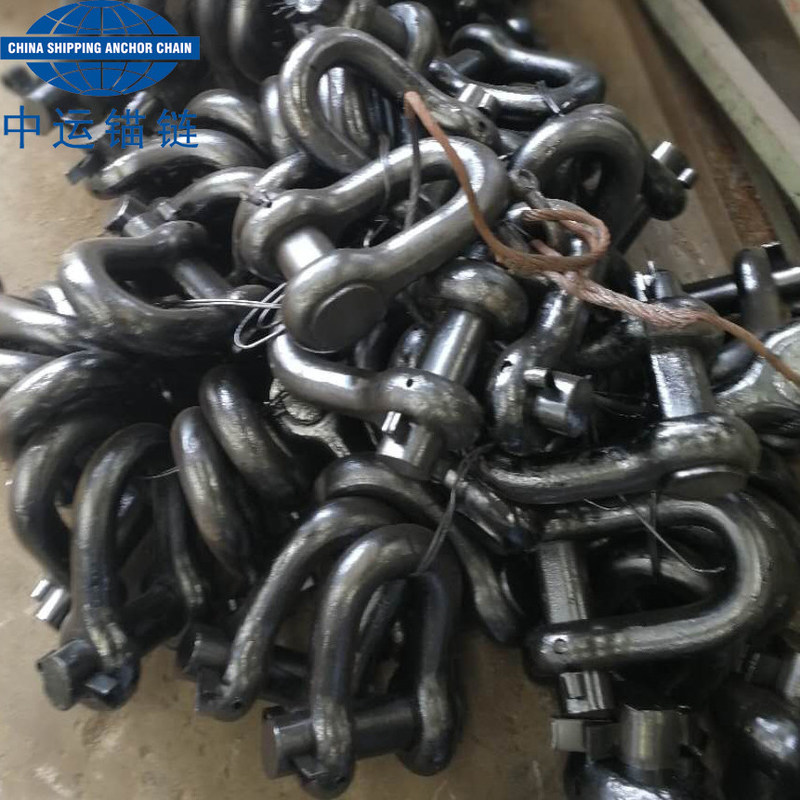

Forelock End Shackle Anchor Chain Fittings-Chain Shipping Anchor Chain
Forelock shackle is one type of mooring straight shackles. It is used for connecting anchor chain cables. Forelock shackle is made from steel. It is applicable to Grade 2 and Grade 3 anchor chains.Through the past years, we built up good business relationships with our customers all over the world. Our technical staff can make any products according to customer's drawing or sample. Sometimes we can give some suggestions to help our customer to improve the design and make the products work better. We can also provide u other types of marine shackles and other anchor chain accessories.For more information, please feel free to contact us by sending an e-mail or giving us a phone call.
Features:
Type: Forelock Shackle
Material: Forged Steel or Cast Steel
Surface: Galvanized or customized
Grade: Grade 2 & Grade 3
Nominal Cable Diameter: 12.7mm to 63.5mm
Proof Load: 6.7ton to 159ton
Size: Can be customized
Packing: Carton or Wooden Case
Certificates: CCS,ABS,BV,LR,NK,RINA,etc.
End Shackle Anchor Chain Fittings Technical Date
Dia.(mm) | Grade 1 | Grade 2 | Grade 3 | |||
Breaking Load (kN) | Proof Load | Breaking Load (kN) | Proof Load (kN) | Breaking Load (kN) | Proof Load (kN) | |
11 | 52 | 36 | 72 | 52 | 102 | 72 |
12.5 | 66 | 46 | 92 | 66 | 132 | 92 |
14 | 82 | 58 | 116 | 82 | 165 | 116 |
16 | 107 | 76 | 150 | 107 | 216 | 150 |
17.5 | 127 | 89 | 179 | 127 | 256 | 179 |
19 | 150 | 105 | 211 | 150 | 301 | 211 |
20.5 | 175 | 123 | 244 | 175 | 349 | 244 |
22 | 200 | 140 | 280 | 200 | 401 | 280 |
24 | 237 | 167 | 332 | 237 | 476 | 332 |
26 | 278 | 194 | 389 | 278 | 556 | 389 |
28 | 321 | 225 | 449 | 321 | 642 | 449 |
30 | 368 | 257 | 514 | 368 | 735 | 514 |
32 | 417 | 291 | 583 | 417 | 833 | 583 |
34 | 468 | 328 | 655 | 468 | 937 | 655 |
36 | 523 | 366 | 732 | 523 | 1050 | 732 |
38 | 581 | 406 | 812 | 581 | 1160 | 812 |
40 | 640 | 448 | 895 | 640 | 1280 | 895 |
42 | 703 | 492 | 981 | 703 | 1400 | 981 |
44 | 769 | 538 | 1080 | 769 | 1540 | 1080 |
46 | 837 | 585 | 1170 | 837 | 1680 | 1170 |
48 | 908 | 635 | 1270 | 908 | 1810 | 1270 |
50 | 981 | 686 | 1370 | 981 | 1960 | 1370 |
52 | 1060 | 739 | 1480 | 1060 | 2110 | 1480 |
54 | 1140 | 794 | 1590 | 1140 | 2270 | 1590 |
56 | 1220 | 851 | 1710 | 1220 | 2430 | 1710 |
58 | 1290 | 909 | 1810 | 1290 | 2600 | 1810 |
60 | 1380 | 969 | 1940 | 1380 | 2770 | 1940 |
62 | 1470 | 1030 | 2060 | 1470 | 2940 | 2060 |
64 | 1560 | 1100 | 2190 | 1560 | 3130 | 2190 |
66 | 1660 | 1160 | 2310 | 1660 | 3300 | 2310 |
68 | 1750 | 1230 | 2450 | 1750 | 3500 | 2450 |
70 | 1840 | 1290 | 2580 | 1840 | 3690 | 2580 |
73 | 1990 | 1390 | 2790 | 1990 | 3990 | 2790 |
76 | 2150 | 1500 | 3010 | 2150 | 4300 | 3010 |
78 | 2260 | 1580 | 3160 | 2260 | 4500 | 3160 |
81 | 2410 | 1690 | 3380 | 2410 | 4820 | 3380 |
84 | 2580 | 1800 | 3610 | 2580 | 5160 | 3610 |
87 | 2750 | 1920 | 3850 | 2750 | 5500 | 3850 |
90 | 2920 | 2050 | 4090 | 2920 | 5840 | 4090 |
92 | 3040 | 2130 | 4260 | 3040 | 6080 | 4260 |
95 | 3230 | 2260 | 4510 | 3230 | 6440 | 4510 |
97 | 3340 | 2340 | 4680 | 3340 | 6690 | 4680 |
100 | 3530 | 2470 | 4940 | 3530 | 7060 | 4940 |
102 | 3660 | 2560 | 5120 | 3660 | 7320 | 5120 |
105 | 3850 | 2700 | 5390 | 3850 | 7700 | 5390 |
107 | 3980 | 2790 | 5570 | 3980 | 7960 | 5570 |
111 | 4250 | 2970 | 5940 | 4250 | 8480 | 5940 |
114 | 4440 | 3110 | 6230 | 4440 | 8890 | 6230 |
117 | 4650 | 3260 | 6510 | 4650 | 9300 | 6510 |
120 | 4850 | 3400 | 6810 | 4850 | 9720 | 6810 |
122 | 5000 | 3500 | 7000 | 5000 | 9990 | 7000 |
124 | 5140 | 3600 | 7200 | 5140 | 10280 | 7200 |
127 | 5350 | 3750 | 7490 | 5350 | 10710 | 7490 |
130 | 5570 | 3900 | 7800 | 5570 | 11140 | 7800 |
132 | 5720 | 4000 | 8000 | 5720 | 11420 | 8000 |
137 | 6080 | 4260 | 8510 | 6080 | 12160 | 8510 |
142 | 6450 | 4520 | 9030 | 6450 | 12910 | 9030 |
147 | 6840 | 4790 | 9560 | 6840 | 13660 | 9560 |
152 | 7220 | 5050 | 10100 | 7220 | 14430 | 10100 |
157 | 7600 | 5320 | 10640 | 7600 | 15200 | 10640 |
162 | 7990 | 5590 | 11180 | 7990 | 15980 | 11180 |
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
