Product Details:
|
Size: | 16~200mm | Model Type: | Pear Shackle |
---|---|---|---|
Useage: | Anchor Chain Fittings | Surface: | Shot Blasting |
Material: | M1 M2 M3 M4 | Standard: | ISO 1704 |
Certificate: | KR LR BV NK ABS DNV GL RMRS CCS RINA | Treatment: | Drop Forged Cast |
High Light: | IACS Anchor Chain Fittings,Pear Anchor Chain Fittings,IACS Pear Links |

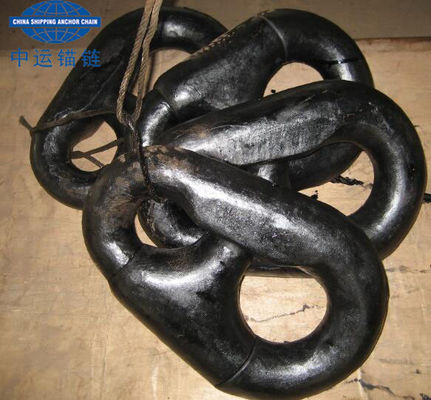

Pear Shackle Anchor Chain Fittings-China Shipping Anchor Chain
Commonly used as a go-to, to connect larger chains to smaller chains or large anchor shackles to smaller anchor chains
Pear Shackle embodies all of the advantages and strength of a joining shackle and is designed to fit the common link of the chain directly to the crown shackle of the anchor.
Pear consists of a ‘C’ –link with two mating caps, which are possively locked by a stainless steel tapered pin and lead plug.
Pear shackle is also the ideal spare shackle, because it replaces the Kenter joining shackle, 3-link adaptor and the D-anchor shackle.
Pear shackle available from no.3 up till no.8 all with IACS certification.
Pear Shackle can connect two different size of anchor chain, this makes it more convenience in mooring system than kenter shackle.
Pear Shackle Anchor Chain Accessories Technical Date
Model | Chain Dia. | Dimensions (mm) | Weight | |||||||||
mm | A | B | C | D | E | F | G | H | J | K | kgs | |
3 | 26~30 | 238 | 167 | 46 | 30 | 38 | 65 | 32 | 46 | 23.5 | 37.5 | 6.5 |
4 | 32~40 | 298 | 206 | 59 | 40 | 48 | 83 | 40×44 | 56 | 26 | 42 | 13 |
5 | 42~50 | 378 | 260 | 76 | 51 | 64 | 100 | 51×60 | 74 | 33 | 55 | 27 |
6 | 52~60 | 454 | 313 | 92 | 60 | 76 | 121 | 62×73 | 88 | 43 | 71 | 49 |
7 | 62~79 | 562 | 376 | 117 | 79 | 95 | 149 | 79×85 | 111 | 49 | 70 | 92 |
8 | 81~92 | 661 | 406 | 140 | 92 | 124 | 152 | 111×122 | 130 | 58 | 81 | 149 |
K CC
Anchor Chain Kenter Shackle End Shackle wi
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
