Product Details:
|
| Size: | 34~200mm | Type: | Studlink / Studless Mooring Anchor Chain |
|---|---|---|---|
| Useage: | Mooring Anchor Chain | Surface: | Shot Blasting |
| Material: | R3 Grade | Standard: | ISO 1704 API |
| High Light: | Studlink Mooring Anchor Chain,Studlink Anchor Mooring Chain,API Mooring Anchor Chain |
||

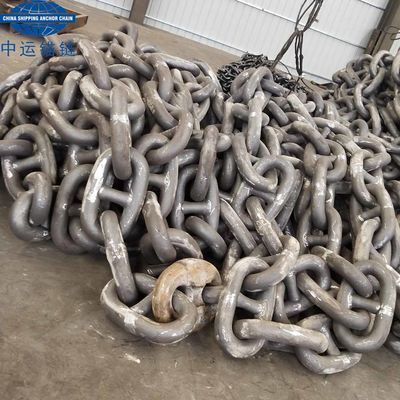

Studlink Mooring Anchor Chain-China Shipping Anchor Chain
Studlink offshore chains are fabricated from R3 up to R5 – a material composition ideal for the offshore industry. The extremely high quality of the material makes these chains a perfect fit to meet your challenging offshore mooring requirements. Studlink offshore chains are available in black (tarred).
MOORING CHAINS PROOF & BREAKING TEST LOADS
WEIGHT & LENGTH OVER 5 LINKS TABLET
| Test Load, in kN | Grade R3 Stud Link | Grade R3S Stud Link | Grade R4 Stud Link | Grade R4S Stud Link | Grade R5 Stud Link |
| Proof | 0.0148 d2 (44 – 0.08d) | 0.0180 d2 (44 – 0.08d) | 0.0216 d2 (44 – 0.08d) | 0.0240 d2 (44 – 0.08d) | 0.0251 d2 (44 – 0.08d) |
| Break | 0.0223 d2 (44 – 0.08d) | 0.0249 d2 (44 – 0.08d) | 0.0274 d2 (44 – 0.08d) | 0.0304 d2 (44 – 0.08d) | 0.0320 d2 (44 – 0.08d) |
| Test Load, in kN | Grade R3 Studless | Grade R3S Studless | Grade R4 Studless | Grade R4S Studless | Grade R5 Studless |
| Proof | 0.0148 d2 (44 – 0.08d) | 0.0174 d2 (44 – 0.08d) | 0.0192 d2 (44 – 0.08d) | 0.0213 d2 (44 – 0.08d) | 0.0223 d2 (44 – 0.08d) |
| Break | 0.0223 d2 (44 – 0.08d) | 0.0249 d2 (44 – 0.08d) | 0.0274 d2 (44 – 0.08d) | 0.0304 d2 (44 – 0.08d) | 0.0320 d2 (44 – 0.08d) |
| Chain Weight, in kg/m | Stud link = 0.0219d2 | ||||
| Chain Weight, in kg/m | Studless chain | ||||
| Weight calculations for each design are to be submitted. | |||||
| Pitch Length | Five Link Measure | ||||
| Minimum | 22d | ||||
| Maximum | 22.55d | ||||
| *Note: data refers to IACS Offshore Mooring Chain Rules | |||||
MOORING CHAINS MECHANICAL PROPERTIES
| Grade | Yield stress N/mm2 minimum (1) | Tensile strength N/mm2 minimum (1) | Elongation % minimum | Reduction (3) of area % minimum | Charpy V-notch impact tests | ||
| Test temperature °C (2) | Average energy J minimum | Avg. energy flash weld J minimum | |||||
| R3 | 410 | 690 | 17 | 50 | 0 -20 | 60 40 | 50 30 |
| R3S | 490 | 770 | 15 | 50 | 0 -20 | 65 45 | 53 33 |
| R4 | 580 | 860 | 12 | 50 | -20 | 50 | 36 |
| R4S(4) | 700 | 960 | 12 | 50 | -20 | 56 | 40 |
| R5(4) | 760 | 1000 | 12 | 50 | -20 | 58 | 42 |
| *NOTES | |||||||
| 1. Aim value of yield to tensile ratio: 0.92 max. | |||||||
| 2. At the option of the Classification Society the impact test of Grade R3 and R3S may becarried out at either 0°C or minus 20°C | |||||||
| 3. Reduction of area of cast steel is to be for Grades R3 and R3S: min. 40 %, for R4, R4Sand R5: min. 35 %, cf. item 2.4.4. | |||||||
| 4. Aim maximum hardness for R4S is HB330 and R5 HB340. | |||||||
Mooring Chains Technical Date
| Chain Diameter | R3 | R3s | R4 | |||||
| Stud/StudlessProof Load(kN) | BreakingLoad (kN) |
Studless Proof Load(kN) | StudProof Load(kN) | Breaking Load(kN) | Studless Proof Load(kN) | Stud Proof Load(kN) | Breaking Load(kN) | |
| 34 | 745 | 1065 | 831 | 859 | 1189 | 917 | 1031 | 1308 |
| 36 | 832 | 1189 | 928 | 960 | 1327 | 1024 | 1152 | 1461 |
| 38 | 923 | 1319 | 1030 | 1065 | 1473 | 1136 | 1278 | 1621 |
| 40 | 1019 | 1456 | 1136 | 1176 | 1626 | 1254 | 1411 | 1789 |
| 42 | 1119 | 1599 | 1248 | 1291 | 1786 | 1377 | 1549 | 1965 |
| 44 | 1223 | 1748 | 1364 | 1411 | 1952 | 1505 | 1693 | 2148 |
| 46 | 1331 | 1903 | 1485 | 1536 | 2124 | 1639 | 1843 | 2338 |
| 48 | 1444 | 2064 | 1610 | 1666 | 2304 | 1777 | 1999 | 2536 |
| 50 | 1560 | 2230 | 1740 | 1800 | 2490 | 1920 | 2160 | 2740 |
| 52 | 1681 | 2403 | 1875 | 1940 | 2683 | 2069 | 2327 | 2952 |
| 54 | 1806 | 2581 | 2014 | 2083 | 2882 | 2222 | 2500 | 3171 |
| 56 | 1934 | 2764 | 2157 | 2231 | 3086 | 2380 | 2677 | 3396 |
| 58 | 2066 | 2953 | 2304 | 2384 | 3297 | 2543 | 2860 | 3628 |
| 60 | 2202 | 3147 | 2456 | 2541 | 3514 | 2710 | 3049 | 3867 |
| 62 | 2342 | 3347 | 2612 | 2702 | 3737 | 2882 | 3242 | 4112 |
| 64 | 2485 | 3552 | 2771 | 2867 | 3966 | 3058 | 3440 | 4364 |
| 66 | 2632 | 3762 | 2935 | 3036 | 4200 | 3239 | 3644 | 4622 |
| 68 | 2782 | 3977 | 3103 | 3210 | 4440 | 3424 | 3852 | 4886 |
| 70 | 2936 | 4196 | 3274 | 3387 | 4686 | 3613 | 4065 | 5156 |
| 73 | 3173 | 4535 | 3539 | 3661 | 5064 | 3905 | 4393 | 5572 |
| 76 | 3417 | 4885 | 3812 | 3943 | 5454 | 4206 | 4731 | 6002 |
| 78 | 3584 | 5124 | 3998 | 4136 | 5721 | 4411 | 4963 | 6295 |
| 81 | 3841 | 5490 | 4284 | 4432 | 6130 | 4727 | 5318 | 6746 |
| 84 | 4104 | 5866 | 4578 | 4735 | 6550 | 5051 | 5682 | 7208 |
| 87 | 4374 | 6252 | 4879 | 5047 | 6981 | 5383 | 6056 | 7682 |
| 90 | 4651 | 6648 | 5187 | 5366 | 7423 | 5724 | 6439 | 8168 |
| 92 | 4838 | 6916 | 5397 | 5583 | 7723 | 5955 | 6699 | 8498 |
| 95 | 5125 | 7326 | 5717 | 5914 | 8180 | 6308 | 7096 | 9002 |
| 97 | 5320 | 7604 | 5934 | 6138 | 8491 | 6547 | 7366 | 9343 |
| 100 | 5616 | 8028 | 6264 | 6480 | 8964 | 6912 | 7776 | 9864 |
| 102 | 5817 | 8316 | 6489 | 6712 | 9285 | 7160 | 8055 | 10217 |
| 105 | 6123 | 8753 | 6830 | 7065 | 9774 | 7536 | 8478 | 10755 |
| 107 | 6330 | 9049 | 7061 | 7304 | 10104 | 7791 | 8765 | 11118 |
| 111 | 6751 | 9650 | 7530 | 7789 | 10775 | 8309 | 9347 | 11857 |
| 114 | 7072 | 10109 | 7888 | 8160 | 11288 | 8704 | 9792 | 12421 |
| 117 | 7398 | 10575 | 8251 | 8536 | 11808 | 9105 | 10243 | 12993 |
| 120 | 7728 | 11047 | 8620 | 8917 | 12335 | 9511 | 10700 | 13573 |
| 122 | 7951 | 11365 | 8868 | 9174 | 12690 | 9785 | 11008 | 13964 |
| 124 | 8175 | 11686 | 9118 | 9433 | 13048 | 10062 | 11319 | 14358 |
| 127 | 8515 | 12172 | 9498 | 9825 | 13591 | 10480 | 11790 | 14956 |
| 130 | 8859 | 12663 | 9881 | 10222 | 14140 | 10903 | 12266 | 15559 |
| 132 | 9090 | 12994 | 10139 | 10488 | 14509 | 11188 | 12586 | 15965 |
| 137 | 9674 | 13829 | 10791 | 11163 | 15442 | 11907 | 13395 | 16992 |
| 142 | 10268 | 14677 | 11452 | 11847 | 16389 | 12637 | 14217 | 18034 |
| 147 | 10869 | 15536 | 12123 | 12541 | 17348 | 13377 | 15049 | 19089 |
| 152 | 11476 | 16405 | 12800 | 13242 | 18318 | 14125 | 15890 | 20157 |
| 157 | 12090 | 17282 | 13485 | 13950 | 19297 | 14880 | 16740 | 21235 |
| 162 | 12708 | 18166 | 14175 | 14664 | 20284 | 15641 | 17596 | 22321 |
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
